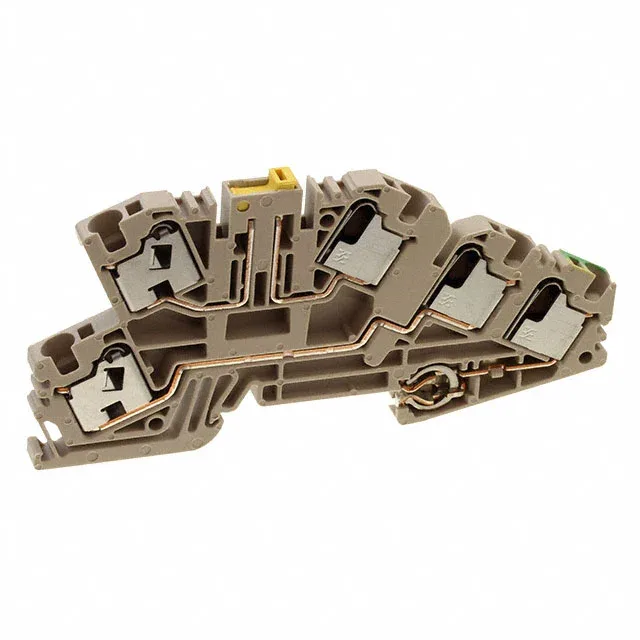

Weidmüller 1899200000
MPN1899200000
Active
CONN TERM BLK DISCONN 10-28AWG
$10.63Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect, Feed Through, Isolated |
| Series | P |
| Disconnect type | Switch, Knife |
| Voltage - UL | 300V |
| Voltage - IEC | 400V |
| Current - UL | 17 A |
| Current - IEC | 20 A |
| Terminal - width | 5.1mm |
| Wire gauge or range - AWG | 10-28 AWG |
| Wire gauge or range - mm2 | 0.5-4mm² |
| Color | Beige |
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 3; 1 Grounded |
| Stripping length | 12mm |
| Termination style | Push In, Spring |
| Positions | 5 |
