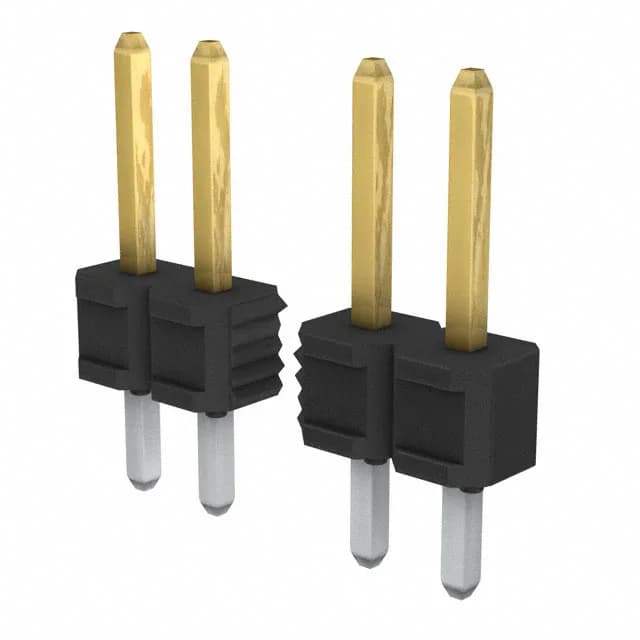

The Amphenol FCI BERGSTIK 75160-156-10LF is a 10-position, single-row board-to-board header at the standard 0.100-inch (2.54 mm) pitch — the workhorse grid for through-hole signal and power interconnects across industrial control, instrumentation, and consumer electronics. The mating side carries gold GXT contact plating at 30.0 µin (0.76 µm), stepping up from basic tin to give the 5 A per-circuit current path a lower-resistance finish that also survives more mate/de-mate cycles than a flash-gold deposit would. The unshrouded square pin profile accepts the matching BERGSTIK receptacle housing; the push-pull fastening type relies on header pin insertion depth rather than a locking latch, so it is best suited for fixed board-to-board stack applications where the pair is mated during assembly and left in place. The housing is black thermoplastic rated UL94 V-0 across a wide -65 °C to 130 °C operating window, and all 10 positions are loaded in a single row for a clean footprint that plays well with standard 0.100-inch pitch routing grids.
The 10-circuit count differentiates this header from other members of the 75160 series. The 0.100-inch pitch and single-row geometry follow industry-standard keep-out conventions regardless of position count, so layout remains consistent across the series.
