What this connector is

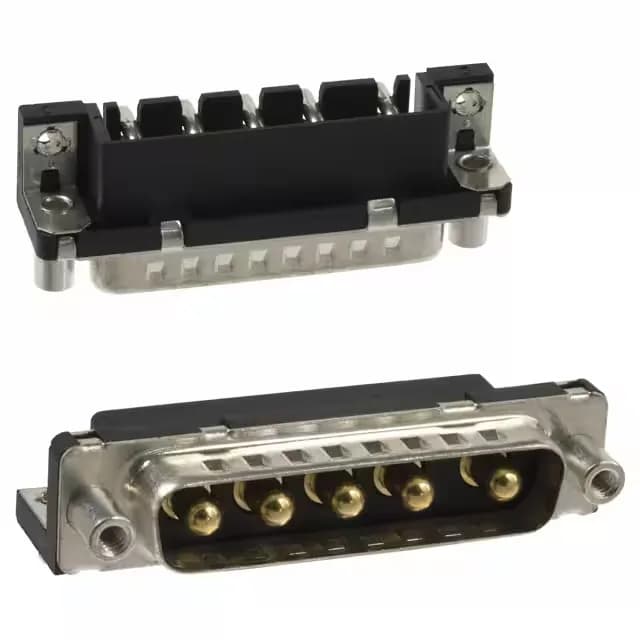

The D5W5P36A6GV08LF is the 5-position power member of the Delta D Combo D-Sub series — a right-angle through-hole plug with male pins sized for industrial equipment panels and power-distribution boards. The shell is size 3 (DB, B), nickel-plated steel with grounding indents that bleed shield current at the connector face before it reaches the contacts. Board-lock lugs and mounting brackets on the flange keep the housing seated under vibration without a separate hardware operation.
What the ratings mean
Rated 30 A per contact at up to 300 V — that is power territory, not signal. The gold plating at 30.0 µin (0.76 µm) is the thick grade, which gives the contact sufficient durability for the high insertion force and repeated mating cycles that power D-Subs typically see in the field. The UL94 V-0 dielectric and the -55 °C to 125 °C operating window cover the full temperature envelope of most enclosed industrial equipment. The 4-40 female screwlock on the mating-side flange is the detail that fixes this connector to the panel face — it accepts a 4-40 jack screw on the mating half, which is what keeps the pair from unseating under cable pull or equipment vibration. The 0.374-inch (9.50 mm) backset is the dimension that governs the panel cutout; the overall shell footprint is size 3 standard.
