What it is

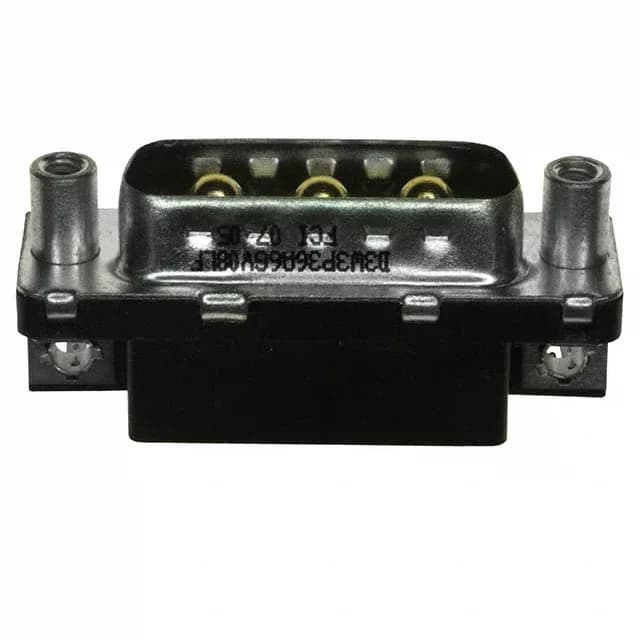

The Delta D D3W3P36A6GV08LF is a 3-position D-Sub combo plug with male power contacts, rated 30 A per circuit at 300 V. Right-angle through-hole body, DA-shell footprint (Size 2 / 3W3 layout), 0.374-inch backset. Gold-plated brass contacts at 30.0 µin (0.76 µm) over the full mating face. The nickel-plated steel shell carries board-lock lugs and grounding indents that reference the PCB plane without a separate grounding tab — a meaningful detail when the shell must carry fault or shield current at the panel face.
Flange and panel fit
The D3W3P36A6GV08LF carries a mating-side female 4-40 screwlock flange — that is the only functional delta against the M3-flange sibling D3W3P36A6GL08LF. Same 30 A power contact rating, same DA shell footprint, same 3-position layout. The choice comes down to whether the mating equipment uses 4-40 UNC jackscrews or M3 screws; both are widely available, but a mismatched flange face does not cross-mate without hardware substitution.
