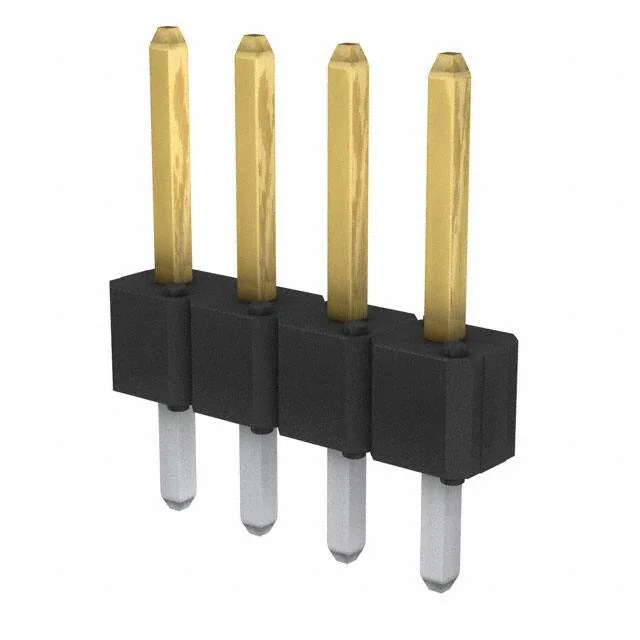

Amphenol ICC (FCI) BERGSTIK® header, order code 54101-S0804LF, 4 positions, single row, 0.100" (2.54mm) pitch, 3A per contact, unshrouded, through hole, solder termination, gold or gold GXT™ mating contact finish.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 54101-S0804LF is a 4-position single-row member of the BERGSTIK® header line from Amphenol ICC (FCI), unshrouded with push-pull fastening. The through-hole solder termination and UL94 V-0 black insulation suit general board-to-board interconnects inside equipment enclosures requiring a flame rating.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) for this BERGSTIK® series.
