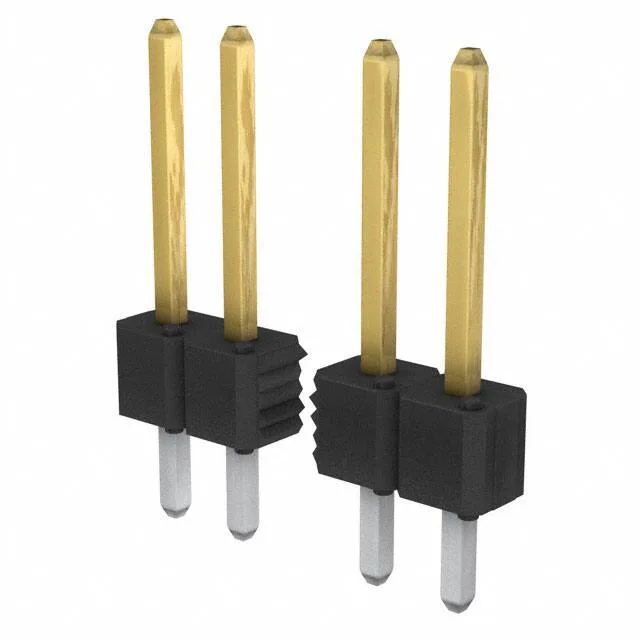

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 36 circuits, single row, 0.100" (2.54 mm) pitch, through-hole solder termination, 15.0 µinch gold-plated mating contacts, rated 3 A per contact.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.538\" (13.67mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 54101-S3036LF: The 36 circuits fill the row completely; no positions are left unloaded. In a high-vibration environment, a secondary retention method (potting or a locking receptacle) is worth planning for.
Rated 3 A per contact.
The base product number is 54101, and the suffix S3036LF indicates a specific plating and packaging variant. Without a verified cross-reference from the manufacturer, treat them as different order codes — confirm the plating and packaging match your BOM before substituting.
