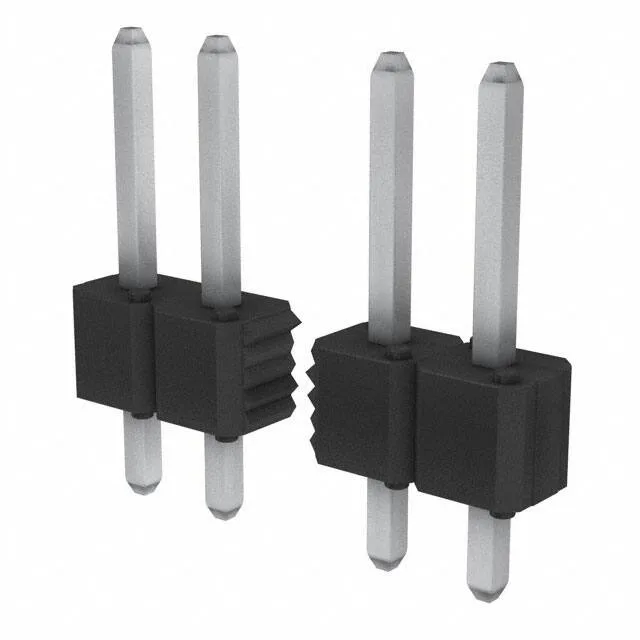

Amphenol ICC (FCI) BERGSTIK header, order code 54101-T0536LF, 36 positions, single row, 2.54 mm pitch, 3 A per contact, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 54101-T0536LF is the 36-position member of Amphenol ICC (FCI)'s BERGSTIK unshrouded header line, single row at 2.54 mm pitch. Tin-plated mating contacts rated 3 A per contact. UL94 V-0 rated black insulation.
Unshrouded push-pull fastening with all 36 positions loaded.
RoHS and REACH compliance documentation is available from the manufacturer.
