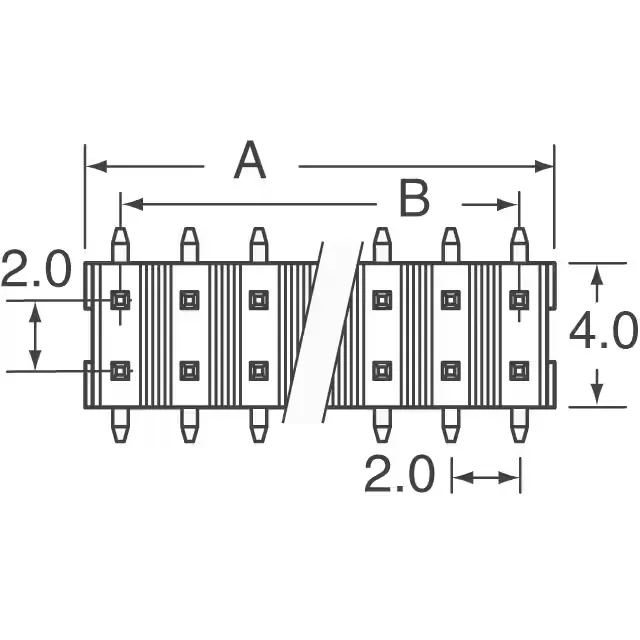

57202-G52-06LF — Amphenol product photo
Amphenol

57202-G52-06LF Amphenol ICC Minitek 2.00mm Header SMD 12 Pos

MPN57202-G52-06LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm, 12-circuit, 2-row unshrouded header, SMT, gold GXT™ mating finish, 2 A AC/DC, 200 V AC/DC, UL94 V-0.

$2.0800Ref. price · indicative, final on quote
57202-G52-06LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

57202-G52-06LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorBlack
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Layout and Mating Fit

The 57202-G52-06LF: Surface-mount termination with push-pull fastening: no locking latch, so the mated pair relies on the receptacle's retention for vibration resistance. The unshrouded design keeps the profile low and allows board-edge routing where z-height is tight.

Current, Voltage, and Contact Durability

The post (solder tail) is tin-plated at 78.7 µinch, which is standard for SMT reflow compatibility.

Position Count Alternatives in the Same Series

The Minitek 2.00 mm family includes identical SMT headers in 4, 14, and 16 positions (57202-G52-02LF, -07LF, -08LF).

Frequently asked questions

What is the pitch and mounting type of 57202-G52-06LF?

It is a surface-mount (SMT) header with solder termination.
