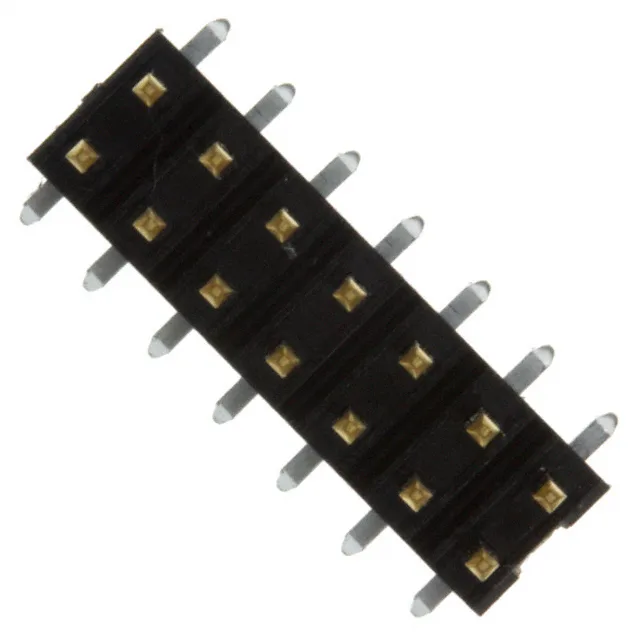

Amphenol ICC (FCI) Minitek® 2.00mm, 14-position, dual-row, unshrouded header, surface-mount, male pin, 0.079" (2.00mm) pitch, 2A (AC/DC), 200V (AC/DC), gold GXT™ mating finish, UL94 V-0, RoHS.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Surface-mount solder tails mean the part flows through reflow with no secondary through-hole wave step. The post finish is 78.7 µinch tin, compatible with standard solder paste.
Rated 2 A (AC/DC) per contact and 200 V (AC/DC) — the current limit is conservative for a 2.00 mm pitch header; derate above ambient if the board runs hot.
Yes, RoHS compliant per the manufacturer's listing.
