Amphenol D09P33E6RV09LF
MPND09P33E6RV09LF
Active

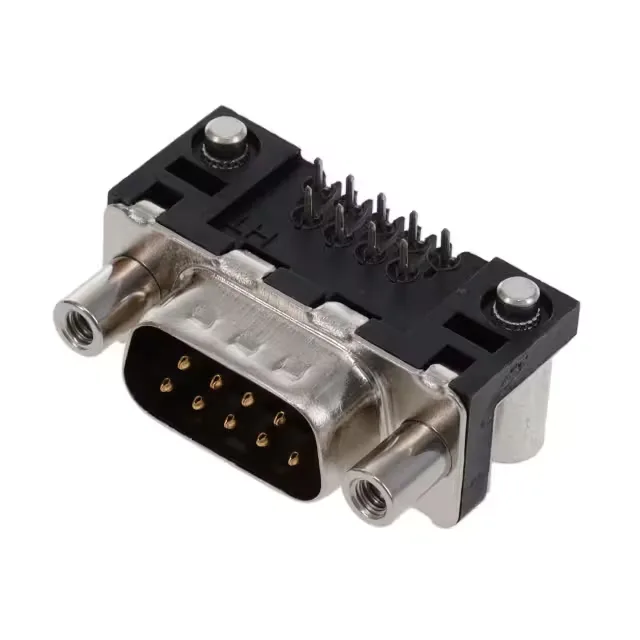

CONN D-SUB PLUG 9P R/A SLD PASTE
$3.25Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDelta D
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Delta D |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 300V |
| Current rating | 5A per Contact |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyamide (PA), Nylon, Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Guide, Grounding Indents, Mounting Brackets |
| Termination | Solder Paste |
| Contact finish | Gold or Gold, GXT™ |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
