Amphenol D09P91C4GV00LF
MPND09P91C4GV00LF
Active

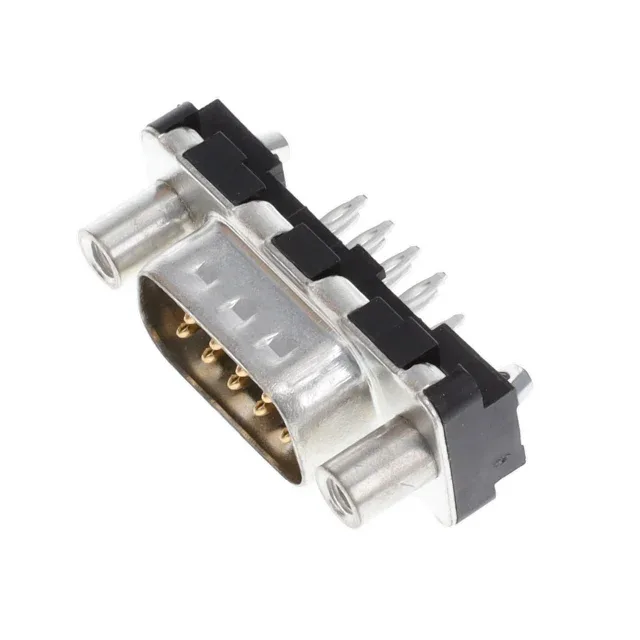

CONN D-SUB PLUG 9POS VERT PRESS
$2.24Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDelta D
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Delta D |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 300V |
| Current rating | 5A per Contact |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Tin-Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents |
| Termination | Press-Fit |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
