Amphenol L77HDEH15SOL2RM5
MPNL77HDEH15SOL2RM5
Active

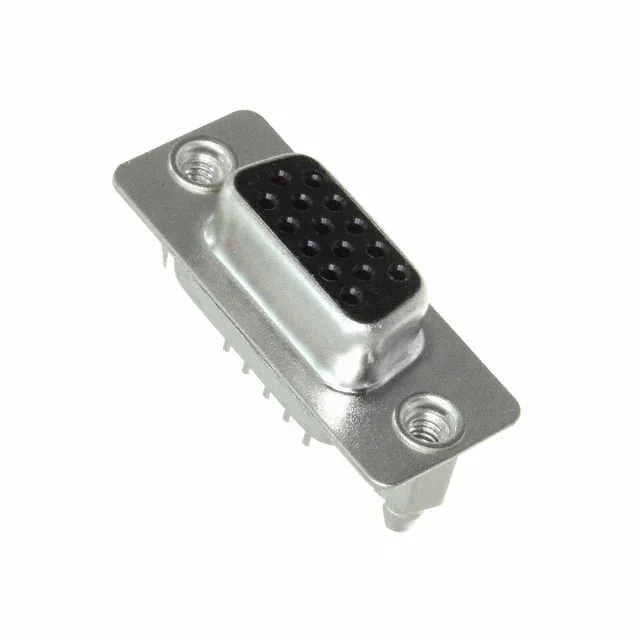

CONN D-SUB HD RCPT 15P VERT SLDR
$2.02Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HD |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | 3A |
| Contact form | Stamped |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | Flash |
