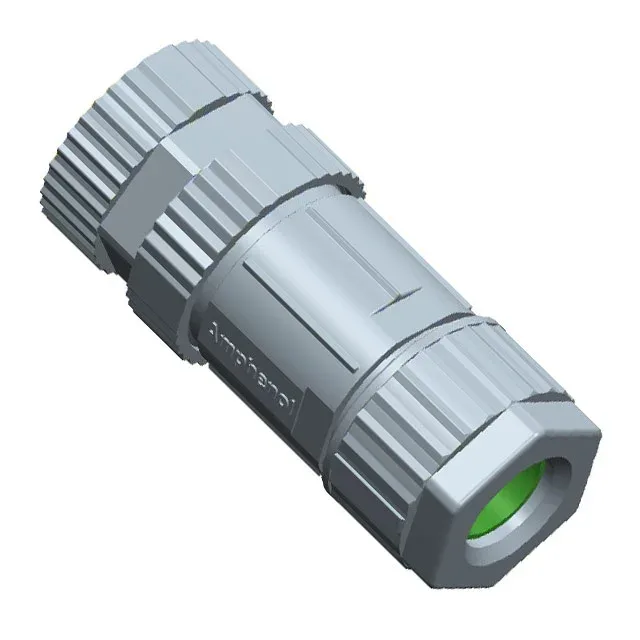

Amphenol M12A-05BFFB-SL7001
MPNM12A-05BFFB-SL7001
Active
CONN RCPT FMALE 5POS GOLD SCREW
$14.91Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 60VAC/DC |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 105°C |
| Color | Black, Silver |
| Shell material | Zinc Alloy |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Screw |
| Shell finish | Nickel |
| Positions | 5 |
| Shell size - insert | M12-5 |
| Contact finish - mating | Gold |
