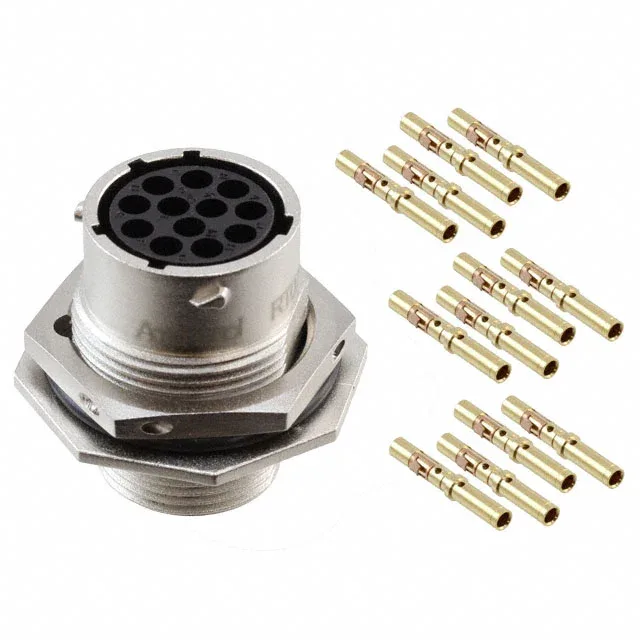

Amphenol RT071412SNH-K
MPNRT071412SNH-K
Active
CONN RCPT FMALE 12POS GOLD CRIMP
$27.86Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Seriesecomate® RM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ecomate® RM |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Bayonet Lock |
| Voltage rating | 250VAC/DC |
| Current rating | 13A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 105°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Primary material | Metal |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Orientation | N (Normal) |
| Termination | Crimp |
| Shell finish | Nickel |
| Positions | 12 |
| Shell size - insert | 14-12 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
