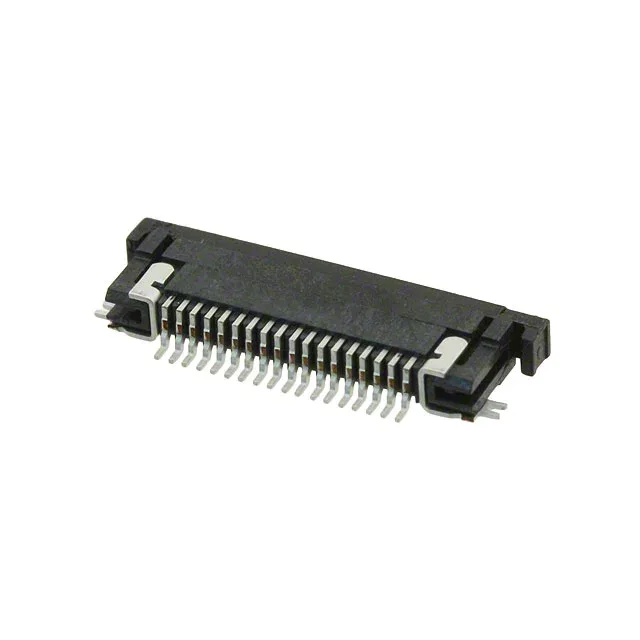

SFV18R-1STE1HLF — Amphenol ICC FFC Connector, 18 Pos, 0.50mm

MPNSFV18R-1STE1HLF
Active

Amphenol ICC (FCI) SFV-R series, 18-position FFC/FPC connector, 0.50mm pitch, right-angle SMT, ZIF flip-lock actuation, tin-plated phosphor bronze contacts, rated 0.5A per contact at 50V.

$0.8500Ref. price · indicative, final on quote
SFV18R-1STE1HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFV18R-1STE1HLF Technical Specifications
ParameterValue
SeriesSFV-R
Mounting typeSurface Mount, Right Angle
Cable end typeNotched or Tabbed
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions18

Product details

0.50 mm pitch, 18-position ZIF — board-edge signal interconnect

The SFV18R-1STE1HLF: This is an 18-circuit FFC/FPC connector from the SFV-R series, built for board-edge signal routing where height is tight. The ZIF flip-lock mechanism accepts a 0.30 mm-thick FPC and holds it without insertion force, which avoids pad wear during assembly. The 1.80 mm height above board leaves room for components underneath on the opposite side.

Mating and termination — FPC thickness and cable end type

The contacts are bottom-side (contact type: Contacts, Bottom), meaning the cable's conductive pads face downward toward the PCB when inserted. Termination is solder — the SMT pads are soldered to the board during reflow.

Frequently asked questions

Where can I buy SFV18R-1STE1HLF and what is the lead time?

The SFV18R-1STE1HLF is an active Amphenol ICC part. No stock-holding claim — quoted per order.

Is SFV18R-1STE1HLF RoHS compliant?

Yes, it is RoHS Compliant per the listed certification.

What FFC cable thickness works with SFV18R-1STE1HLF?

The connector accepts FFC or FPC with a thickness of 0.30 mm, with a notched or tabbed cable end.
