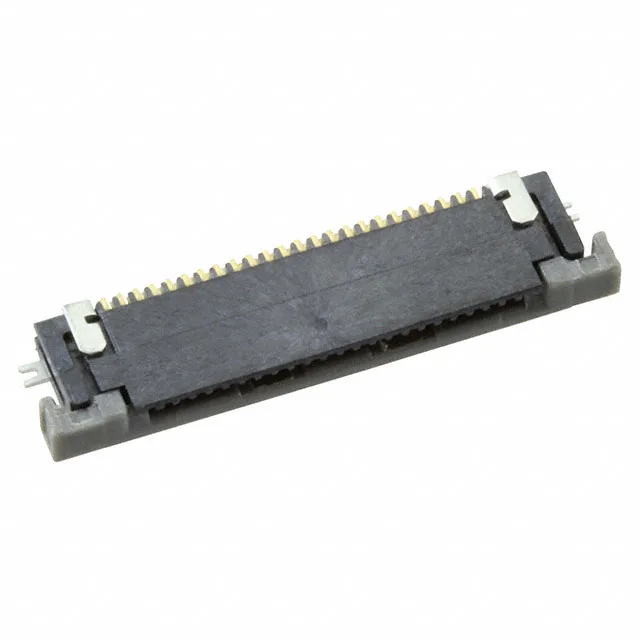

Amphenol SFV24R-4STBE1HLF
MPNSFV24R-4STBE1HLF
Active
$0.7200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SFV-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -55°C~105°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Height above board | 0.071\" (1.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.33mm |
| Positions | 24 |
