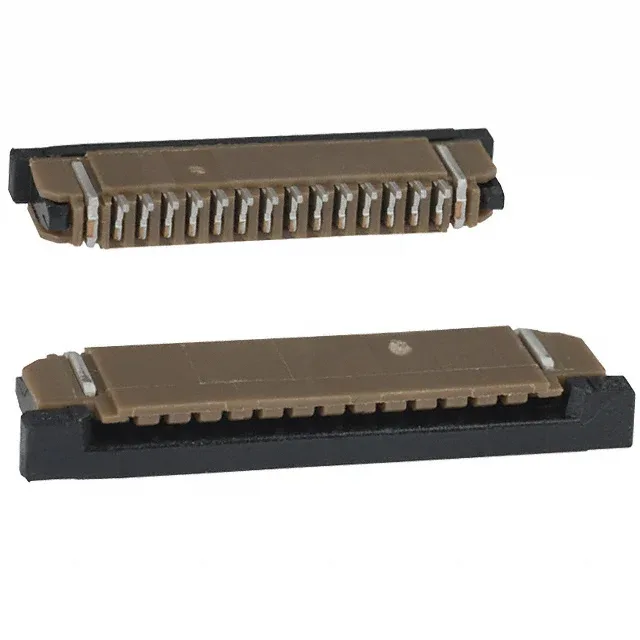

Amphenol ICC (FCI) SFW-R FFC/FPC connector, order code SFW14R-2STE1LF, 14 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated contacts, surface-mount right-angle, ZIF actuation, kinked-pin termination.
| Parameter | Value |
|---|---|
| Series | SFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Brown |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
| Parameter | Value |
|---|---|
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Height above board | 0.106\" (2.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Kinked Pin |
| Mating cycles | 20 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 14 |
The SFW14R-2STE1LF: The ZIF mechanism eliminates insertion force on the FFC/FPC pads — the slide lock clamps the cable after insertion, supporting 20 mating cycles. Accepts straight or tapered cable ends; the 0.30 mm and 0.33 mm thickness range covers most common FPC and flat-flex ribbon gauges.
