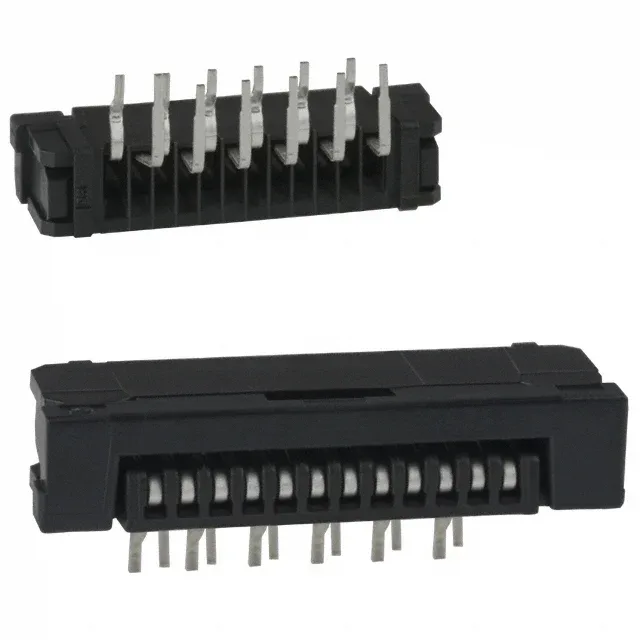

SLW12R-1C7LF — Amphenol product photo
Amphenol

SLW12R-1C7LF Amphenol ICC FCI FFC/FPC Connector, 12 Pos

MPNSLW12R-1C7LF
Active

Amphenol ICC (FCI) SLW-R series, SLW12R-1C7LF — 12-position, 0.039" (1.00mm) pitch, FFC/FPC connector, bottom contacts, ZIF slide-lock actuator, right-angle through-hole, tin-plated phosphor bronze contacts, rated 1 A per contact at 100 V.

$0.4900Ref. price · indicative, final on quote
SLW12R-1C7LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SLW12R-1C7LF Technical Specifications
ParameterValue
SeriesSLW-R
Mounting typeThrough Hole, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~85°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.157\" (4.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTray
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions12

Product details

Board Layout and Fit for the SLW12R-1C7LF

The Zero Insertion Force (ZIF) actuator with slide lock secures the FPC without requiring insertion force on the pads — this prevents pad lift on thin flex circuits. The connector accepts FPC thicknesses of 0.30mm or 0.33mm, with straight or tapered cable ends.

Current, Voltage, and Contact Duty

For applications requiring repeated disconnect, a gold-plated contact variant would be more appropriate, but this part is tin.

It is RoHS compliant.

The SLW-R series includes 8-position (SLW8R-1C7LF), 16-position (SLW16R-1C7LF), and 18-position (SLW18R-1C7LF) variants, all sharing the same 1.00mm pitch, 4.00mm height, ZIF slide lock, and tin contacts.

Frequently asked questions

Where can I buy SLW12R-1C7LF and what is the lead time?

The SLW12R-1C7LF is available through our independent distribution network. Submit a request for your target quantity.

What is the difference between SLW12R-1C7LF and SLW18R-1C7LF?

The only difference is the number of positions: SLW12R-1C7LF has 12 positions; SLW18R-1C7LF has 18 positions. Both share the same 1.00mm pitch, 4.00mm height, ZIF slide lock, tin contacts, and 1 A rating.

Is SLW12R-1C7LF RoHS compliant?

Yes, the SLW12R-1C7LF is RoHS compliant per the manufacturer's listing.
