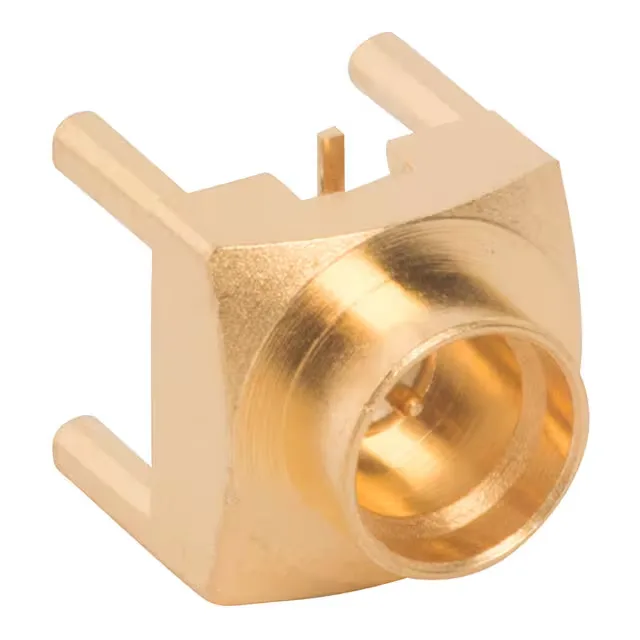

SMP-MSSB-PCT-5T — Amphenol product photo
Amphenol

SMP-MSSB-PCT-5T Amphenol RF SMP Jack, 50 Ohm, 18 GHz

MPNSMP-MSSB-PCT-5T
Active

Amphenol RF SMP-MSSB-PCT-5T, SMP jack male pin, 1 port, 50 Ohm impedance, 18 GHz max frequency, threaded fastening, through-hole solder termination, gold body finish, smooth bore.

$6.7100Ref. price · indicative, final on quote
SMP-MSSB-PCT-5T datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SMP-MSSB-PCT-5T Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Male Pin
Fastening typeThreaded
Frequency - max18 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialLiquid Crystal Polymer (LCP)
Center contact materialBrass
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSmooth Bore
Impedance50Ohm
Body finishGold
Mating cycles100
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMP Jack for 18 GHz Signal Paths

The SMP-MSSB-PCT-5T: The smooth bore feature reduces insertion force and wear across its rated 100 mating cycles, making it a practical choice for test ports or modular RF assemblies where repeated connects are expected. The gold-plated brass body and gold centre contact plating maintain signal integrity in the microwave band.

Threaded Retention and Temperature Range

Through-hole mounting with solder shield termination gives a solid ground reference through the board.

Frequently asked questions

What is the impedance and frequency range of SMP-MSSB-PCT-5T?

This SMP jack is rated for 50 Ohm impedance with a maximum frequency of 18 GHz, covering common microwave bands including Ku-band.
