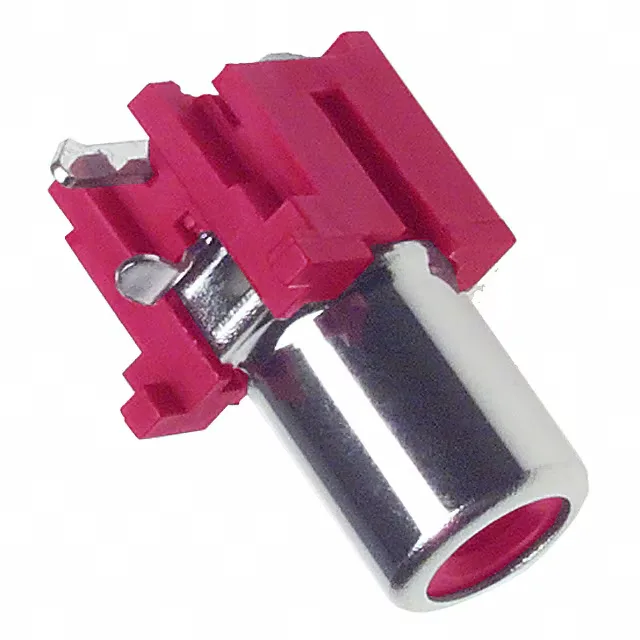

RCJ-027
CUI Devices
Board Lock-20°C~85°CBag
Ref. price$0.8900
Lead time on requestGet quote ›
CUI Devices RCJ0 Series
25 variants · CUI Devices
About the CUI Devices RCJ0 Series
The CUI Devices RCJ0 Series series groups 25 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common cable opening of -, connector type of Phono (RCA) Jack and contact material of Brass. Variants differ by actual diameter, body color and body material, so you can match the exact actual diameter your application requires using the selection guide below. All listed CUI Devices RCJ0 Series part numbers are active and orderable.
Select a variant by
- Actual diameter
- 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) · 0.134\" (3.40mm ID), 0.327\" (8.30mm OD) · 0.138\" (3.50mm ID), 0.327\" (8.30mm OD) · 0.142\" (3.60mm ID), 0.327\" (8.30mm OD) · 0.146\" (3.70mm ID), 0.327\" (8.30mm OD)
- Body color
- Silver · Silver, Black · Silver, Orange · Silver, Red · Silver, White
- Body material
- Brass · Steel
- Contact material - plating
- Nickel · Tin
- Features
- - · Board Lock · Grounding Tab, Thread Lock
- Housing material
- - · Polyamide (PA66), Nylon 6/6
- Includes
- - · 3 pcs - 1 Connector, 1 Grounding Tab, 1 Nut
- Insulation color
- Black · Blue · Orange · Red · White · Yellow
Shared specifications
- Cable opening
- -
- Connector type
- Phono (RCA) Jack
- Contact material
- Brass
- Gender
- Female
- Industry recognized mating diameter
- 3.20mm ID, 9.00mm OD (RCA)
- Internal switch
- Does Not Contain Switch
- Mating length (Depth)
- -
- Number of positions (Contacts)
- 2 Conductors, 2 Contacts
- Panel hole size
- -
- Shielding
- Unshielded
- Signal lines
- Mono
- Voltage - rated
- -
Variant comparison
| Parameter | RCJ-027 | RCJ-047 | RCJ-051 | RCJ-041 | RCJ-053 | RCJ-025 |
|---|---|---|---|---|---|---|
| Actual diameter | 0.138\" (3.50mm ID), 0.327\" (8.30mm OD) | 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) | 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) | 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) | 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) | 0.138\" (3.50mm ID), 0.327\" (8.30mm OD) |
| Body color | Silver | Silver, Orange | Silver, Black | Silver, Black | Silver, White | Silver |
| Body material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact material - plating | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Housing material | - | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | - |
| Includes | - | - | - | - | - | - |
| Insulation color | Orange | Orange | Black | Black | White | Blue |
Request a quote on any CUI Devices RCJ0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the CUI Devices RCJ0 Series variants differ?
- CUI Devices RCJ0 Series part numbers differ by actual diameter, body color, body material and contact material - plating. Use the selection guide above to pick by actual diameter.
- How many CUI Devices RCJ0 Series part numbers are listed?
- 25 CUI Devices RCJ0 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for CUI Devices RCJ0 Series?
- Request a quote (RFQ) for any CUI Devices RCJ0 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
