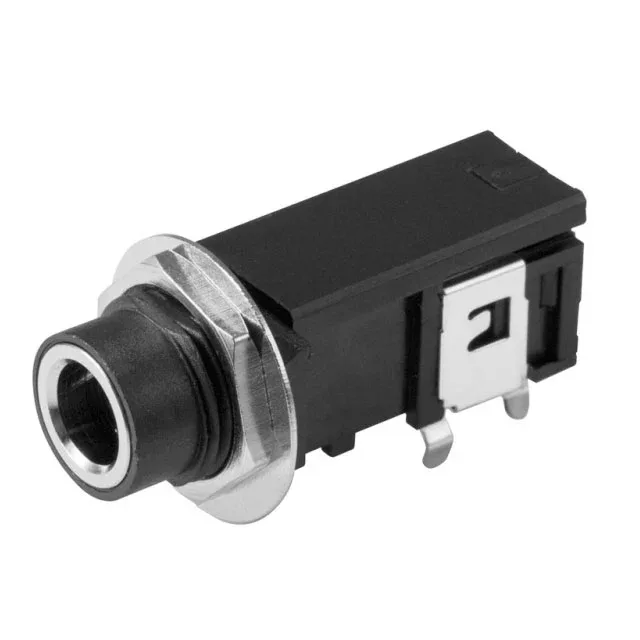

SJ-63072J
CUI Devices
Through Hole, Right Angle7/16\"-20Female
Ref. price$1.8800
Lead time on requestGet quote
CUI Devices SJ630 Series
7 variants · CUI DevicesAll Audio Connectors →
About the CUI Devices SJ630 Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for CUI Devices SJ630 Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The CUI Devices SJ630 Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body color of Black, body material of - and cable opening of -. Variants differ by actual diameter, connector size and contact material, so you can match the exact actual diameter your application requires using the selection guide below. All listed CUI Devices SJ630 Series part numbers are active and orderable.
Select a variant by
- Actual diameter
- - · 0.252\" (6.40mm) · 0.253\" (6.43mm)
- Connector size
- 3/8\"-32 · 7/16\"-20 · M12
- Contact material
- Brass, Phosphor Bronze · Phosphor Bronze
- Contact material - plating
- Gold · Silver
- Features
- Cover, Mounting Hardware, Thread Lock · Mounting Hardware, Thread Lock
- Housing material
- Polyamide (PA66), Nylon 6/6 · Polybutylene Terephthalate (PBT)
- Internal switch
- Does Not Contain Switch · Single Switch · Three Switches · Two Switches
- Mounting
- Through Hole · Through Hole, Right Angle
Shared specifications
- Body color
- Black
- Body material
- -
- Cable opening
- -
- Connector type
- Phone Jack
- Current rating
- 1 A
- Gender
- Female
- Includes
- -
- Industry recognized mating diameter
- 6.35mm (0.250\", 1/4\") - Headphone
- Insulation color
- -
- Mating length (Depth)
- 1.220\" (31.00mm)
- Operating temperature
- -25°C~70°C
- Package
- Bag
Variant comparison
| Parameter | SJ-63072J | SJ-63083A | SJ-63073E | SJ-63053A | SJ-63062A | SJ-63053B |
|---|---|---|---|---|---|---|
| Actual diameter | - | 0.252\" (6.40mm) | - | 0.253\" (6.43mm) | 0.252\" (6.40mm) | 0.252\" (6.40mm) |
| Connector size | 7/16\"-20 | 3/8\"-32 | 7/16\"-20 | M12 | M12 | M12 |
| Contact material | Phosphor Bronze | Brass, Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact material - plating | Silver | Silver | Silver | Silver | Silver | Gold |
| Features | Mounting Hardware, Thread Lock | Mounting Hardware, Thread Lock | Mounting Hardware, Thread Lock | Cover, Mounting Hardware, Thread Lock | Cover, Mounting Hardware, Thread Lock | Cover, Mounting Hardware, Thread Lock |
| Housing material | Polyamide (PA66), Nylon 6/6 | Polybutylene Terephthalate (PBT) | Polyamide (PA66), Nylon 6/6 | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Internal switch | Two Switches | Does Not Contain Switch | Three Switches | Does Not Contain Switch | Does Not Contain Switch | Single Switch |
| Mounting | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
Request a quote on any CUI Devices SJ630 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
