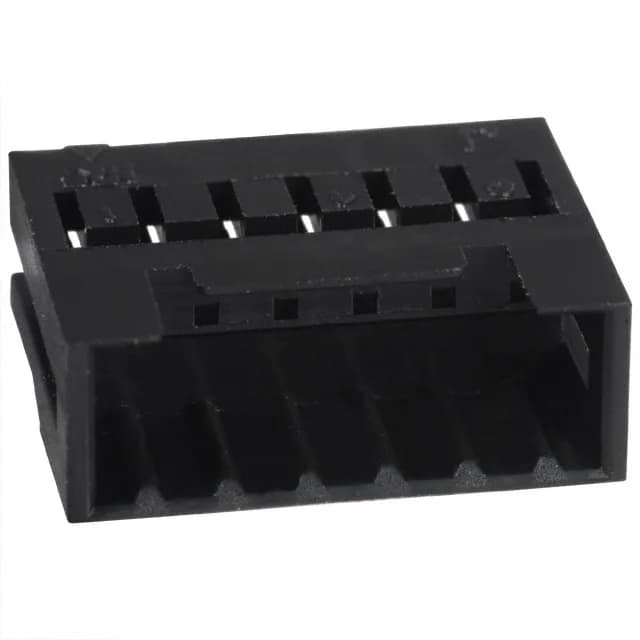

The Hirose DF3-6EP-2C is a 6-position plug housing from the DF3 series, built for wire-to-board or inline crimp connections. It uses a 0.079" (2.00 mm) pitch, single-row layout, and terminates via crimp contacts that are ordered separately — the housing ships empty. This is the male pin side of the DF3 mating pair; it pairs with the DF3 series receptacle housing to complete the connection.
Hirose DF3-6EP-2C Plug Housing, 6 Pos, 2.00 mm Pitch
MPNDF3-6EP-2C
Active
Hirose DF3 series, 6-position plug housing, 2.00 mm pitch, 1 row, free-hanging, crimp termination, black PA66 housing, contacts not included.
$0.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDF3
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DF3 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
Product details
Frequently asked questions
What contacts fit the DF3-6EP-2C housing?
The DF3-6EP-2C housing accepts male pin crimp terminals from the DF3 series. The contacts are not included with this order code — you must order them separately to complete the connection.
Is the DF3-6EP-2C RoHS compliant?
Yes, the DF3-6EP-2C is ROHS3 compliant.
