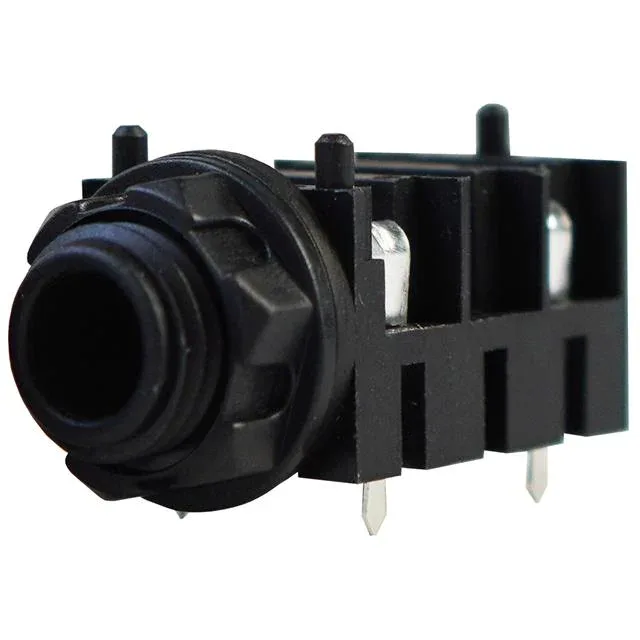

4 PIN 1/4" JACK PCB FULL-THREADE
$1.7700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | TJ |
| Mounting type | Panel Mount, Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 30VDC |
| Current rating | 1 A |
| Operating temperature | -25°C ~ 70°C |
| Body color | Black |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation color | Black |
| Contact material - plating | Silver |
| Gender | Female |
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Thread size | 7/16\"-20 |
| Signal lines | Mono |
| Actual diameter | 0.252\" (6.40mm) |
| Panel hole size | 0.449\" (11.40mm) |
| Internal switch | Two Switches |
| Number of positions (Contacts) | 2 Conductors, 4 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
Sourcing this connector
IO Audio Technologies IO-TJ4HF is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against IO Audio Technologies and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
