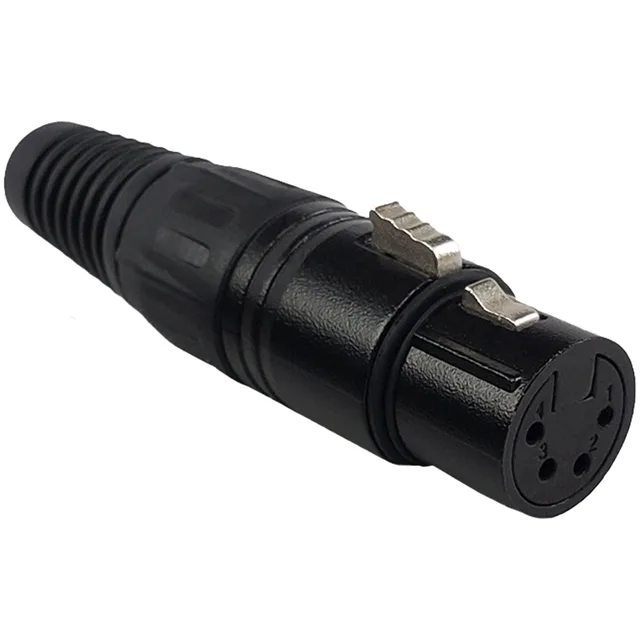

IO Audio Technologies IO-XLR4-F-BK
MPNIO-XLR4-F-BK
Active
PROFESSIONAL 4 PIN XLR CONNECTOR
$8.0Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Latch Lock |
| Voltage rating | 125VAC |
| Current rating | 10A |
| Cable opening | 0.138\" ~ 0.315\" (3.50mm ~ 8.00mm) |
| Operating temperature | -40°C ~ 70°C |
| Color | Black |
| Shell material | Zinc Die Cast |
| Insert material | Polyoxymethylene (POM) |
| Contact material | Phosphor Bronze |
| Primary material | Metal |
All specifications
| Parameter | Value |
|---|---|
| Backshell material, plating | Zinc Die Cast |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Strain Relief |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Audio, Aviation, Communication Systems |
| Positions | 4 |
| Shell size - insert | XLR |
| Contact finish - mating | Silver |
