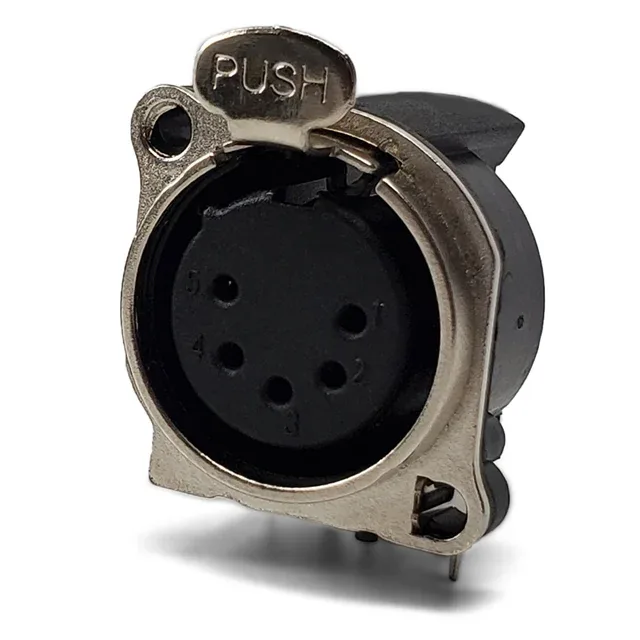

CONN RCPT FMALE XLR 5P GOLD SLDR
$5.61Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | B |
| Mounting type | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Latch Lock |
| Voltage rating | 50VAC |
| Current rating | 3A |
| Mounting feature | Flange |
| Operating temperature | -40°C ~ 70°C |
| Color | Black, Silver |
| Shell material | Polyamide (PA), Nylon |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Brass |
| Primary material | Plastic |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Board Guide, Board Lock, Ground |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio, Lighting Control |
| Positions | 5 |
| Shell size - insert | XLR |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 1.97µin (0.050µm) |
Sourcing this connector
IO Audio Technologies IO-XLR5-F-BH is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against IO Audio Technologies and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
