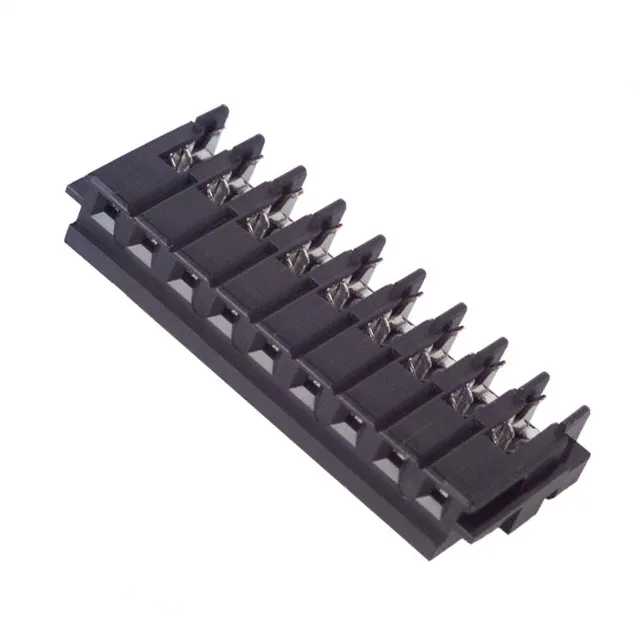

JST HR series receptacle, 9 positions, 0.098" (2.50mm) pitch, 1 row, female socket, IDC termination, tin-lead contact finish, detent lock, free hanging, black, bulk.
| Parameter | Value |
|---|---|
| Series | HR |
| Wire type | Discrete |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Wire gauge | 24 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin-Lead |
| Rows | 1 |
| Positions | 9 |
This receptacle terminates 24 AWG discrete wire directly through IDC — no separate crimp terminal needed. The female socket contacts are tin-lead finished, which was standard before the RoHS transition. For harness builders, the IDC termination saves a crimp step but requires the correct wire OD and insulation type; the 24 AWG fit is confirmed on the spec line.
The 09HR-4K has 9 positions on a 0.098" (2.50mm) pitch in a single row.
The listed contact finish is tin-lead, which typically does not meet RoHS compliance for lead content. Verify the specific compliance status with the manufacturer for your jurisdiction.
