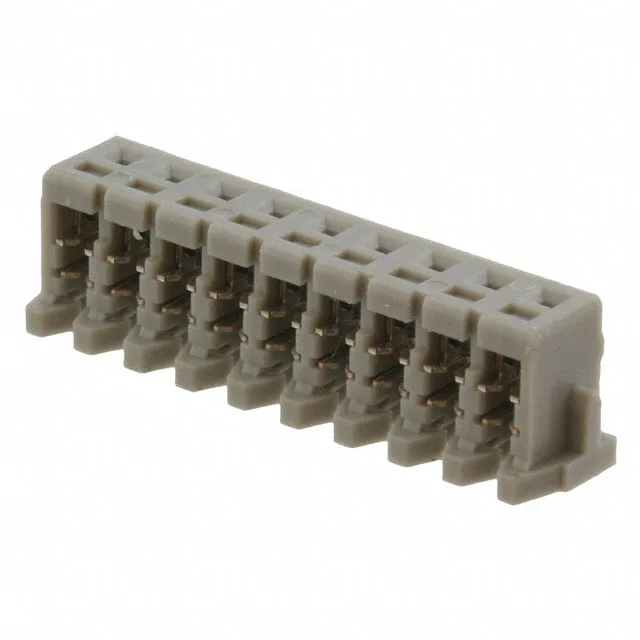

JST 09KR-6H-P KR Series IDC Socket, 9 Pos, 2.00mm Pitch

MPN09KR-6H-P
Active

JST KR series IDC socket, 9 positions, 1 row, 2.00mm pitch, tin-plated female socket contacts, free-hanging in-line, IDC termination for 26 AWG discrete wire, gray housing, bulk.

$0.5100Ref. price · indicative, final on quote
09KR-6H-P datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

09KR-6H-P Technical Specifications
ParameterValue
SeriesKR
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorGray
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions9

Product details

IDC Socket for 26 AWG Discrete Wire Harnesses

The JST 09KR-6H-P is a 9-position IDC socket from the KR series, designed for terminating discrete 26 AWG wire without stripping or crimping. Tin-plated female socket contacts handle the signal-level currents typical of internal harnesses in consumer electronics, appliances, and control panels.

Wiring the Harness — IDC Termination

No crimp tool or stripping step is needed, which speeds up harness assembly when you're working with 26 AWG discrete wire.

Matching Header and Series Compatibility

The 09KR-6H-P mates with the JST KR series pin headers — look for the BB-KR or SB-KR header series with 2.00 mm pitch and the same 9-position count. The keyed housing ensures the socket only mates in one orientation, which prevents reverse-wiring errors on the line.

Frequently asked questions

What is the pitch of JST 09KR-6H-P?

The JST 09KR-6H-P has a 0.079" (2.00 mm) pitch, which determines the board footprint spacing for the mating header.

What wire gauge does 09KR-6H-P accept?

The 09KR-6H-P is rated for 26 AWG discrete wire, terminated via IDC without stripping or crimping.

What is the difference between 09KR-6H-P and 09KR-6H-S?

The 09KR-6H-P is a socket (female) connector, while the 09KR-6H-S is the mating pin header (male) in the same KR series. Both share the 9-position count and 2.00 mm pitch.
