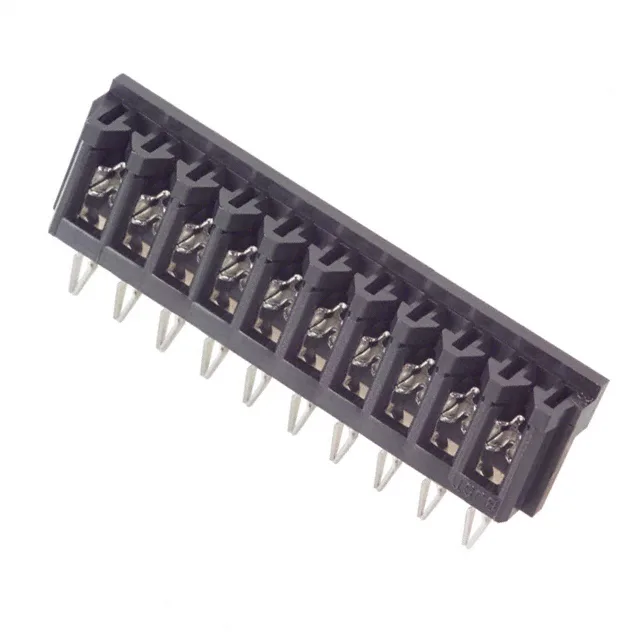

JST DB series IDC connector, 10 positions, 1 row, 0.098" (2.50 mm) pitch, through-hole press-fit, tin-lead contacts, black, closed end, 24-28 AWG stranded.
| Parameter | Value |
|---|---|
| Series | DB |
| Mounting type | Through Hole, Press-Fit |
| Connector type | Individual Wires |
| Wire gauge | 24-28 AWG, Stranded |
| Cable pitch | 0.098\" (2.50mm) |
| Cable termination | IDC |
| Color | Black |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin-Lead |
| Rows | 1 |
| Board-Side pitch | 0.098\" (2.50mm) |
| Positions | 10 |
It terminates 24-28 AWG stranded wire via insulation displacement, eliminating the need for individual crimp contacts.
The press-fit through-hole mounting means the connector is inserted into plated through-holes on the PCB and held by interference, no solder required. This suits high-vibration or rework-prone assemblies where a soldered joint might crack under thermal cycling. The closed-end housing prevents wire push-through past the contacts.
The JST 10DB-4K accepts 24-28 AWG stranded wire. The IDC slot is sized for that range; wire outside it may not terminate reliably or may damage the contact.
