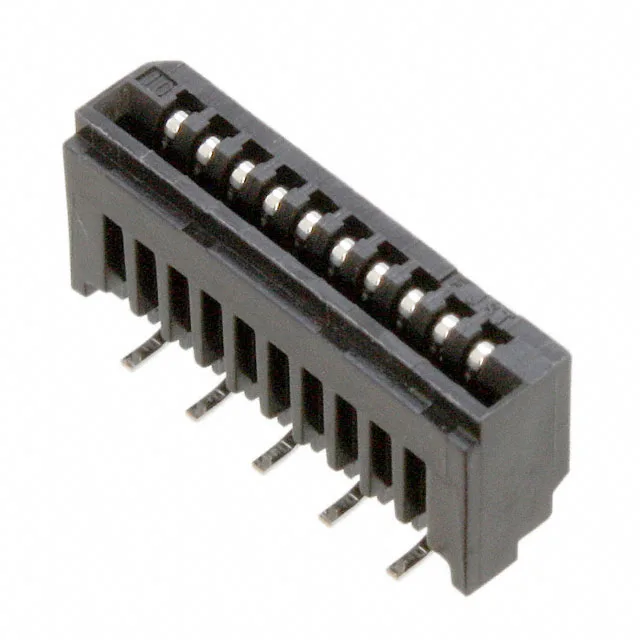

10FMN-BMTTN-A-TF JST FMN FFC Connector 10 Pos 1mm SMD

MPN10FMN-BMTTN-A-TF
Active

JST Sales America Inc., FMN series, FFC connector, 10 positions, 0.039" (1.00mm) pitch, vertical SMD, Low Insertion Force (LIF), tin contacts, 0.5 A, 50 V, -25°C ~ 85°C.

$0.7500Ref. price · indicative, final on quote
10FMN-BMTTN-A-TF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10FMN-BMTTN-A-TF Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C ~ 85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions10

Product details

The 10FMN-BMTTN-A-TF is a JST FMN-series FFC connector with 10 positions on a 0.039" (1.00mm) pitch, terminated by vertical SMD solder tails. It accepts a 0.30mm-thick FFC with contacts on one side, using a Low Insertion Force (LIF) design that reduces wear on the flex circuit pads during mating. The housing is black polyamide (PA6T) rated UL94 V-0, with tin-plated phosphor bronze contacts.

Pitch and board footprint

The vertical orientation (contacts vertical, 1-sided) means the FFC enters perpendicular to the PCB, saving board-edge real estate compared to right-angle styles.

Frequently asked questions

What FFC thickness does the 10FMN-BMTTN-A-TF accept?

It accepts FFC with a thickness of 0.30mm. The connector is a vertical, 1-sided contact type, so the FFC must have exposed pads on one side only.
