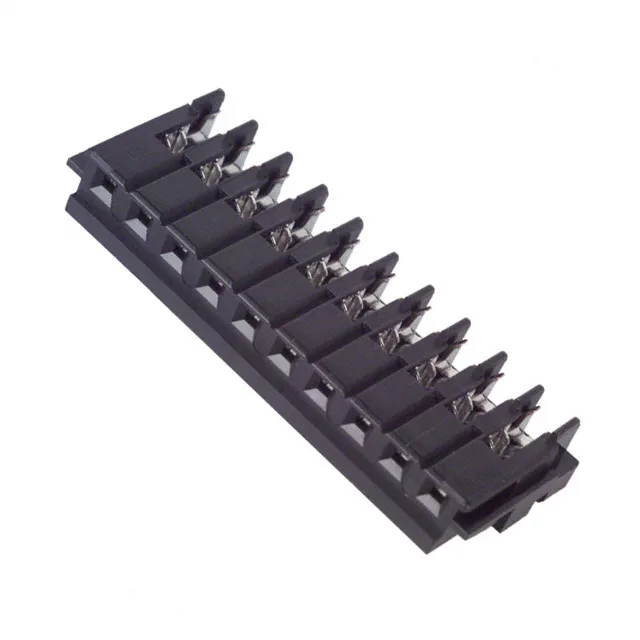

10HR-4K — JST product photo
JST

JST 10HR-4K HR Series 10-Position IDC Receptacle, Obsolete

MPN10HR-4K
Obsolete

JST HR Series, 10 Position, 1 Row, 0.098" (2.50mm) Pitch, IDC, Receptacle, Female Socket, Tin, Free Hanging, Detent Lock, Black, Bulk.

$0.4900Ref. price · indicative, final on quote
10HR-4K datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10HR-4K Technical Specifications
ParameterValue
SeriesHR
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeDetent Lock
Wire gauge24 AWG
Cable terminationIDC
ColorBlack
Pitch0.098\" (2.50mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions10

Product details

10-Position IDC Receptacle, 2.50mm Pitch — JST HR Series

The JST 10HR-4K is a 10-position, single-row IDC receptacle from the JST HR series, terminated to discrete 24 AWG wire. A detent lock holds the mated pair without tools — useful in low-vibration environments where a positive latch is preferred over a full locking ramp. Tin-plated female sockets suit applications with limited mating cycles, typical of internal harnesses that connect once during assembly.

Obsolete — Sourcing for Legacy BOMs

If a redesign is under consideration, the 2.50mm pitch and 10-position count are the footprint constraints to match.

Frequently asked questions

Where can I buy the JST 10HR-4K connector?

Submit an RFQ with your target quantity for current pricing and lead time.

Is the JST 10HR-4K obsolete?

Yes, the JST 10HR-4K is officially obsolete. No direct replacement or successor order code has been published by JST. For legacy BOM support, sourcing is via surplus or last-time-buy channels.
