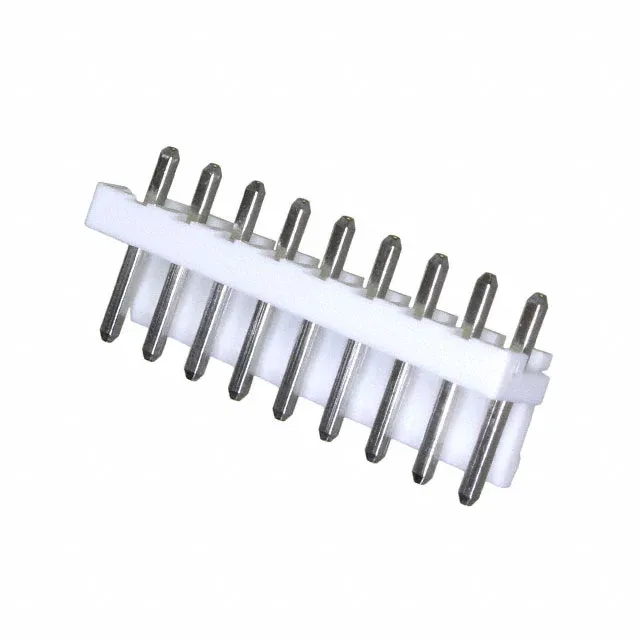

JST B9P-VH-B Header, 9-Pos 3.96mm, 10A, 250V

MPNB9P-VH-B
Active

JST VH series header, order code B9P-VH-B, 9 positions, single row, 3.96 mm pitch, 10 A, 250 V, tin-plated male pins, through-hole, solder termination.

$0.7000Ref. price · indicative, final on quote
B9P-VH-B datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B9P-VH-B Technical Specifications
ParameterValue
SeriesVH
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating10A
Operating temperature-25°C ~ 85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.370\" (9.40mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions9
Contact finish - postTin
Contact length - post0.146\" (3.70mm)
Overall contact length0.575\" (14.60mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)

Product details

9-position 3.96 mm pitch power header

The B9P-VH-B is the 9-circuit member of JST's VH series board-to-wire header line, rated 10 A at 250 V with tin-plated male pins. Through-hole solder termination and a shrouded 1-wall housing with locking ramp retention suit it for wire-to-board power distribution.

Position count across the VH series

Within the VH series the B9P-VH-B's 9 positions share the 3.96 mm pitch, tin plating, and 10 A rating with the B9P-VH and B9P-VH-B(LF)(SN) — the position count is the sole selection axis.

Frequently asked questions

What is the closest functional second-source for the B9P-VH-B?

The B9P-VH-B(LF)(SN) is the RoHS-compliant variant with identical mechanical dimensions, pitch, and ratings — it drops into the same board footprint and mates with the same receptacle.

Will the B9P-VH-B drop into a panel specified around the B9P-VH-B(LF)(SN) without rewiring?

Yes — the B9P-VH-B and B9P-VH-B(LF)(SN) share the same 3.96 mm pitch, 9-position layout, through-hole footprint, and locking ramp. The only difference is RoHS compliance.
