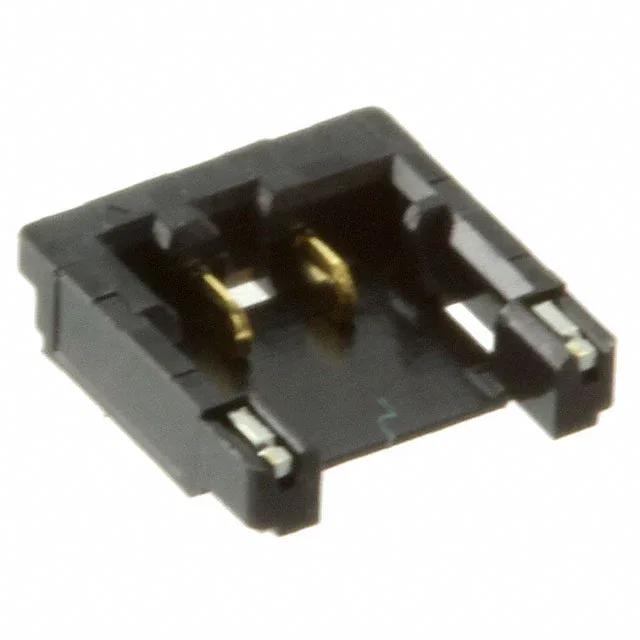

JST ACHL series, BM02B-ACHLKS-GAN-ETF, board-to-cable/wire header, 2 positions, 1.20 mm pitch, surface mount right-angle, gold-plated male blade contacts, detent lock, 2 A, 50 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | ACHL |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.047\" (1.20mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.047\" (1.20mm) |
| Positions | 2 |
| Contact finish - mating | Gold |
The male blade contacts are gold-plated, and the housing includes a detent lock for secure mating.
The 2 A per contact rating suits signal-level power and low-current I/O. The shrouded 3-wall design protects the contacts during blind mating.
