2.00 mm pitch, 3-position SMT header with locking ramp

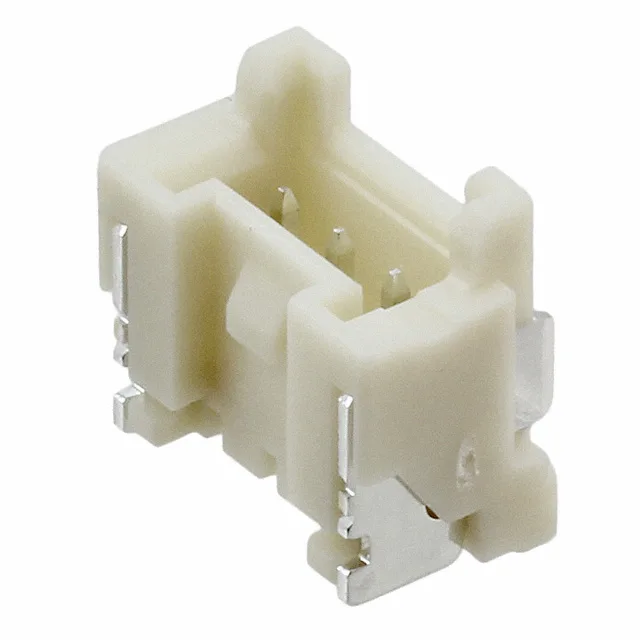

The BM03B-PASS-1-TFT: This is a 3-position, single-row, shrouded header from JST's PA series, terminated by SMT and designed for board-to-cable/wire applications.
BM03B-PASS-1-TFT JST PA 3-Pin SMT Header 2mm Pitch
MPNBM03B-PASS-1-TFT
Active
JST Sales America Inc. PA series, Board to Cable/Wire, 3-position, 2.00mm pitch, shrouded SMT header with locking ramp, 250V, 3A, UL94 V-0, Active.
$0.8100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PA |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.1mm, 16mm, 16.2mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
How can I order BM03B-PASS-1-TFT or check stock?
Submit an RFQ with your target quantity and we'll source it against current distributor pricing and lead time. This is an active JST part with no known supply constraints.
What is the mating connector for BM03B-PASS-1-TFT?
It mates with JST PA series crimp receptacle housings (e.g., PAP-03V-S) loaded with the appropriate crimp terminals. The locking ramp on the header engages the latch on the receptacle housing.
Is BM03B-PASS-1-TFT RoHS compliant?
Yes, it is RoHS compliant.
