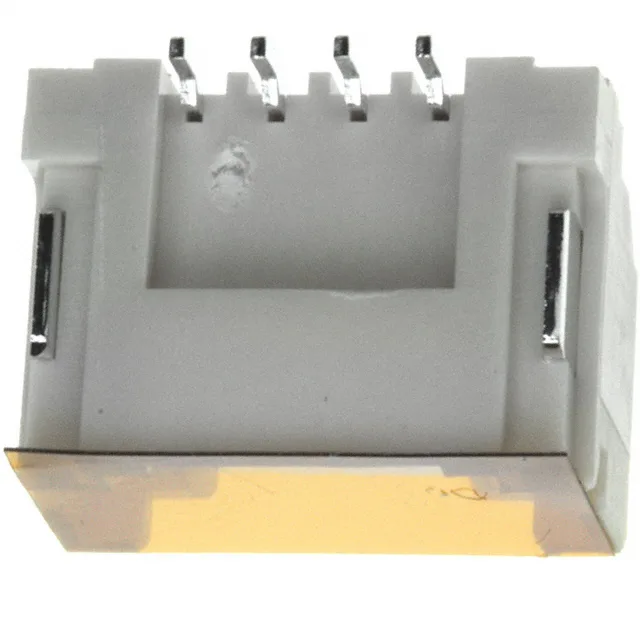

JST ZE series, Board to Cable/Wire, 4 circuits, 1.50mm pitch, SMT, shrouded - 4 wall, locking ramp, 2 A, 100 V, Tape & Reel, natural nylon UL94 V-0.
| Parameter | Value |
|---|---|
| Series | ZE |
| Gender | Outer Shroud Contact |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.295\" (7.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 9.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
BM04B-ZESS-TBT is a 4-position, single-row surface-mount header from JST's ZE series, on 1.50 mm pitch — a tight enough pitch to save board real estate but still hand-solderable in rework. The tin-on-tin contact finish (mating and post) is cost-effective for applications that don't demand high mating-cycle counts; expect several dozen cycles before wear becomes a concern.
No — the listing shows RoHS non-compliant. If your BOM requires RoHS, the BM04B-ZESS-TBT(LF)(SN) is the direct functional equivalent with the same 4 positions, 1.50 mm pitch, and locking ramp, but marked RoHS compliant.
This is consistent across the ZE series SMT headers.
