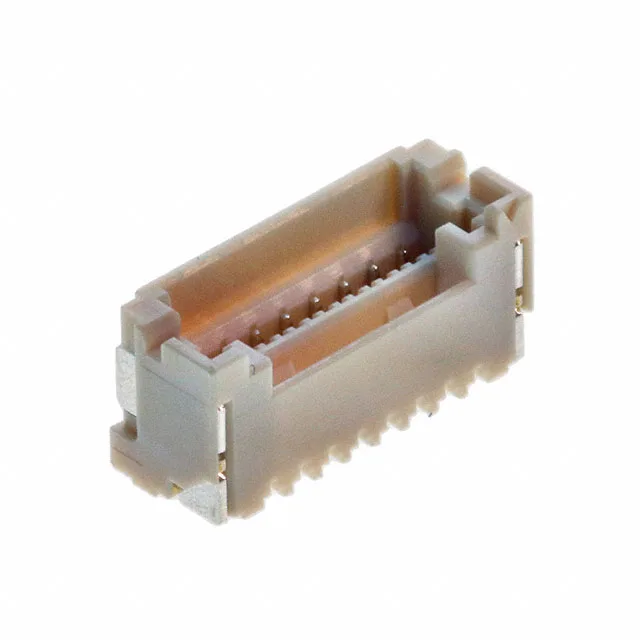

JST BM08B-ZESS-TBT Header SMD 8POS 1.5mm

MPNBM08B-ZESS-TBT
Active

JST ZE series, BM08B-ZESS-TBT, Board to Cable/Wire header, SMD, 8 positions, 1.50mm pitch, locking ramp, 2A, 100V, UL94 V-0, Natural

$1.1100Ref. price · indicative, final on quote
BM08B-ZESS-TBT datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BM08B-ZESS-TBT Technical Specifications
ParameterValue
SeriesZE
GenderOuter Shroud Contact
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.295\" (7.50mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights9.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows1
Pitch0.059\" (1.50mm)
Positions8
Contact finish - postTin
Contact finish - matingTin

Product details

Board-fit header for ZE wire-to-board system

JST BM08B-ZESS-TBT is an 8-position, single-row SMD header from the ZE series, pitched at 1.50 mm. It mates with the ZE crimp receptacle housing to form a wire-to-board connection rated 2 A per circuit at 100 V. Pick-and-place compatible with solder retention features for automated assembly.

Mated stack height and footprint constraints

Insulation height of 0.295" (7.50 mm) gives clearance for the locking ramp and receptacle shroud.

Sourcing and compliance note

Housing is UL94 V-0 rated polyamide (nylon), natural color.

Frequently asked questions

What is the mating connector for BM08B-ZESS-TBT?

The mating half is a ZE series crimp receptacle housing (e.g., ZE-08 or similar) loaded with the appropriate crimp terminals. The locking ramp on the header engages the receptacle latch for a secure mate.

Is BM08B-ZESS-TBT RoHS compliant?

No — the listing shows RoHS non-compliant. Check your local regulations before specifying this part.

What are the alternatives or equivalents for BM08B-ZESS-TBT?

The closest functional second-source within the ZE series is BM09B-ZESS-TBT (9 positions) or BM07B-ZESS-TBT (7 positions) — same pitch, current rating, and locking ramp. For an 8-position match, no direct drop-in exists outside the BM08B-ZE base number.
