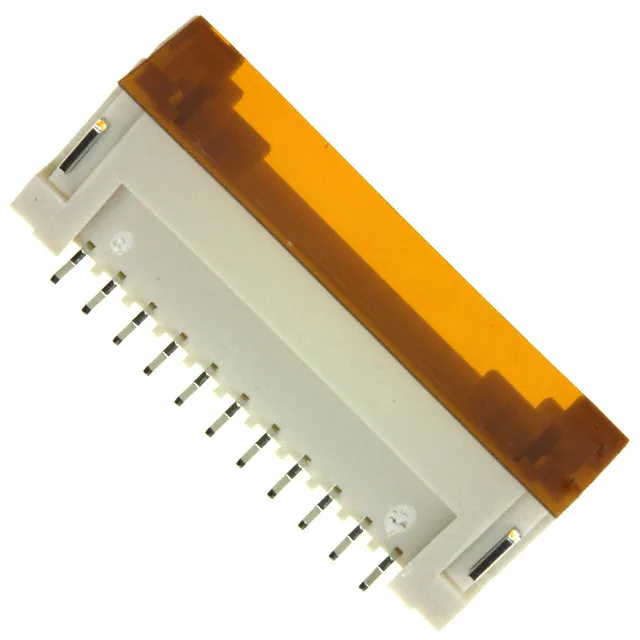

JST ZE series header, order code BM11B-ZESS-TBT, 11 positions, single row, 1.50 mm pitch, 2 A, 100 V, tin-plated mating contacts, surface-mount, solder termination, shrouded 4-wall.
| Parameter | Value |
|---|---|
| Series | ZE |
| Type | Outer Shroud Contact |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.295\" (7.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Mated stacking heights | 9.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The BM11B-ZESS-TBT is the 11-circuit member of JST's ZE series of board-to-cable/wire headers. It carries tin-plated mating contacts rated 2 A at 100 V and mounts surface-mount with solder termination.
The 4-wall shroud and integral locking ramp provide mechanical retention against cable pull and vibration — the mated stack height is 9.4 mm.
The BM11B-ZESS-TBT mates with a ZE series receptacle housing (not included); the matching crimp terminal is ordered separately.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from JST on request.
