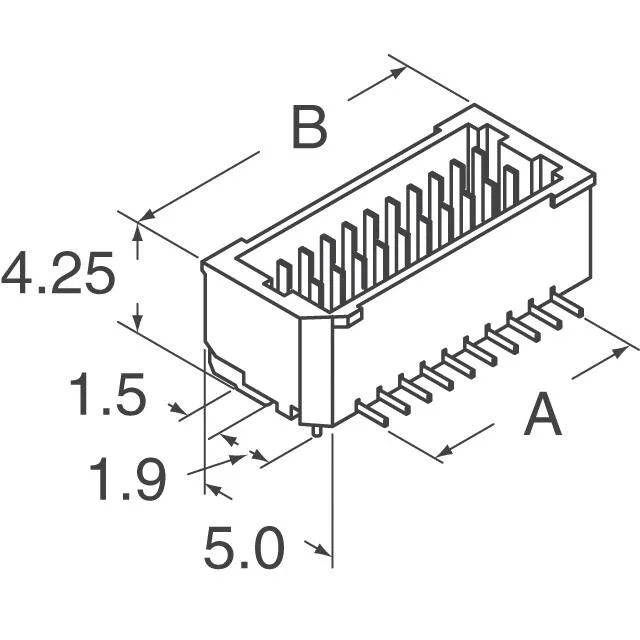

BM20B-SRDS-A-G-TF — JST product photo
JST

JST BM20B-SRDS-A-G-TF SHD Header, 20-Pos, 1.00mm, Obsolete

MPNBM20B-SRDS-A-G-TF
Obsolete

JST SHD header, order code BM20B-SRDS-A-G-TF, 20 positions, dual row, 1.00 mm pitch, 1 A, 50 V, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall.

$1.7300Ref. price · indicative, final on quote
BM20B-SRDS-A-G-TF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BM20B-SRDS-A-G-TF Technical Specifications
ParameterValue
SeriesSHD
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating50V
Current rating1A
Operating temperature-25°C~85°C
Contact materialPhosphor Bronze
Insulation colorNatural
Insulation height0.167\" (4.25mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Mated stacking heights6.3mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Pick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.039\" (1.00mm)
Positions20
Contact finish - matingGold

Product details

Board-to-cable header, 20 positions, 1.00 mm pitch

The BM20B-SRDS-A-G-TF is the 20-circuit member of JST's SHD board-to-cable header line, dual-row, with a 1.00 mm mating pitch and a shrouded four-wall housing that guides the mating receptacle and protects the pins. Rated 1 A per contact at 50 V, with gold-plated mating contacts and a mated stack height of 6.3 mm — the SMT solder termination and solder retention features suit pick-and-place assembly.

Discontinued — no direct successor on record

JST has marked the BM20B-SRDS-A-G-TF as Obsolete. No official successor or pin-compatible replacement is listed from the original manufacturer.
