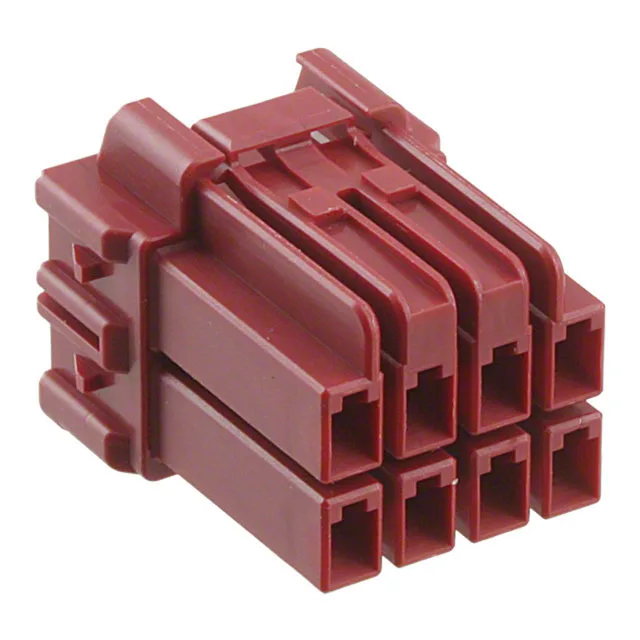

JST HIL series, 8-position dual-row plug, 0.130" (3.30 mm) pitch, free-hanging crimp termination, latch lock, red PA66 housing, -25°C to 85°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | HIL |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -25°C ~ 85°C |
| Color | Red |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.130\" (3.30mm) |
| Package | Bulk |
| Row spacing | 0.130\" (3.30mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |
It uses a 0.130" (3.30 mm) pitch and a latch lock for secure mating — a common choice for wire-to-wire or wire-to-board harnesses where you need a positive lock against vibration but don't want to solder. The red PA66 housing is rated for -25°C to 85°C, so it's at home in an automotive cabin or an industrial control cabinet.
This plug mates with a HIL series header that shares the same 0.130" (3.30 mm) pitch and dual-row layout.
The housing accepts female socket crimp terminals from the JST HIL series. Contacts are not included with this order code — source the matching SHILP-series terminal separately and verify the wire gauge range from its datasheet.
This plug mates with a JST HIL series male header that shares the same 0.130" (3.30 mm) pitch and dual-row configuration. The latch lock on the plug engages with the header's locking ramp.
