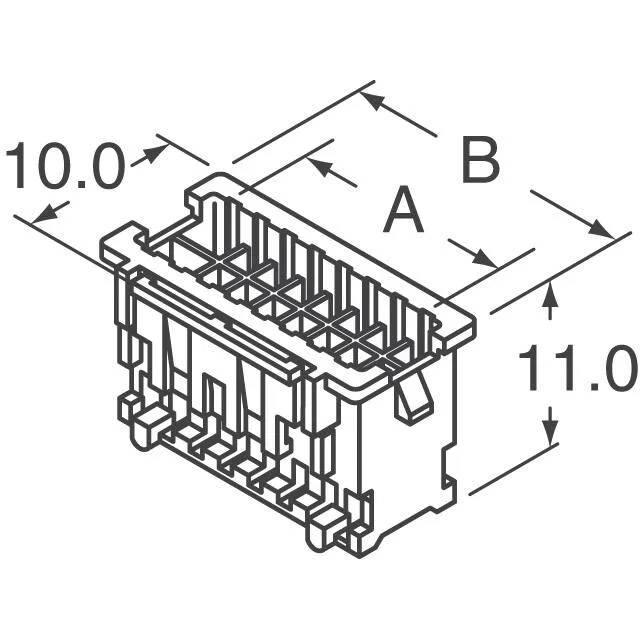

PADP-12V-1-S — JST product photo
JST

JST PADP-12V-1-S Receptacle Housing, 12 Pos, 2.00mm, Active

MPNPADP-12V-1-S
Active

JST PAD series receptacle housing, PADP-12V-1-S, 12 positions, dual-row, 0.079" (2.00mm) pitch, free-hanging, latch lock, crimp termination, natural nylon, contacts not included.

$0.3400Ref. price · indicative, final on quote
PADP-12V-1-S datasheet
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

PADP-12V-1-S Technical Specifications
ParameterValue
SeriesPAD
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-25°C~85°C
ColorNatural
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions12

Product details

The JST PADP-12V-1-S is a 12-position, dual-row receptacle housing from the PAD series, on a 0.079" (2.00mm) pitch with matching row spacing. It is a free-hanging (in-line) connector body designed for crimp termination — you bring your own contacts, because the housing ships empty.

Contacts Are a Separate Line Item

The listing note is clear: contacts are not included. The PADP-12V-1-S is a housing only — you need to order the matching female crimp socket terminals separately. The 2.00mm pitch and dual-row layout accept JST's PAD-series crimp contacts, sized for the wire gauge your harness calls for. If you are filling a BOM line for a 12-circuit harness, add the terminals to the order at the same time.

Frequently asked questions

Does JST PADP-12V-1-S include contacts?

No. The housing ships empty — contacts are not included. You need to order the matching JST PAD-series female crimp socket terminals separately.

What is the pitch of JST PADP-12V-1-S?

The pitch is 0.079" (2.00mm), with the same 0.079" (2.00mm) row spacing. This is a dual-row, 12-position layout.

Where can I buy JST PADP-12V-1-S?

This part is sourced to order. Contact our sales team for current pricing and lead time based on your quantity.
