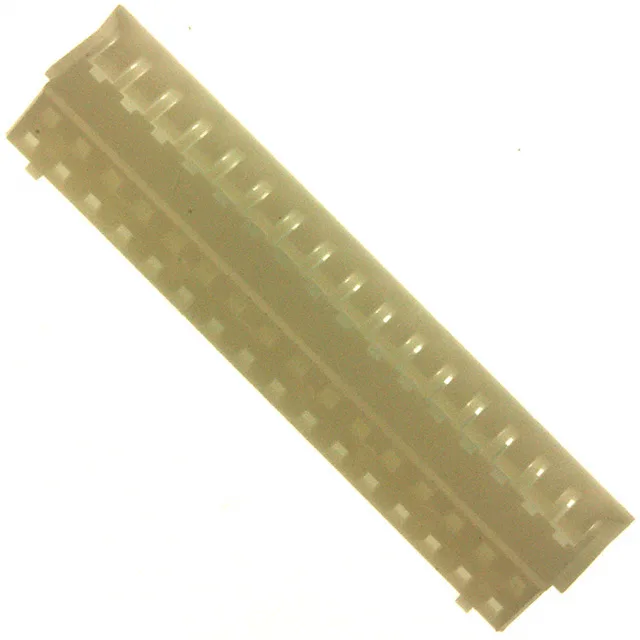

PHDR-32VS — JST product photo
JST

JST PHDR-32VS Receptacle, 32 Pos, 2.00mm Pitch

MPNPHDR-32VS
Active

JST PHD series receptacle, 32 positions, 2 rows, 0.079" (2.00mm) pitch, free-hanging, crimp termination, natural housing, contacts not included.

$0.5900Ref. price · indicative, final on quote
PHDR-32VS datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

PHDR-32VS Technical Specifications
ParameterValue
SeriesPHD
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-25°C~85°C
ColorNatural
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions32

Product details

32-Position Dual-Row Receptacle at 2.00mm Pitch

The 0.079" (2.00mm) pitch and 0.079" (2.00mm) row spacing give it a compact footprint that suits dense cable assemblies where board space is tight.

What the 2.00mm Pitch Means for Your Layout

The 2.00mm pitch is tighter than the common 2.54mm (0.100") grid, so the PCB footprint for the mating header will be narrower — check that your board's routing density and trace widths fit within the reduced pad spacing. The dual-row arrangement at the same 2.00mm row pitch means the 32 positions occupy a roughly 32mm by 4mm footprint on the header side, which is a compact envelope for a 32-circuit interconnect.

The free-hanging design means no board mounting; the connector sits in-line on the wire harness, secured by the housing's locking ramp when mated.

Frequently asked questions

Does PHDR-32VS come with contacts?

No — the listing explicitly notes contacts are not included. You must order the matching female socket crimp terminals separately for the PHD series.

What is the pitch of PHDR-32VS?

The pitch is 0.079" (2.00mm) for both the position spacing and the row spacing.
