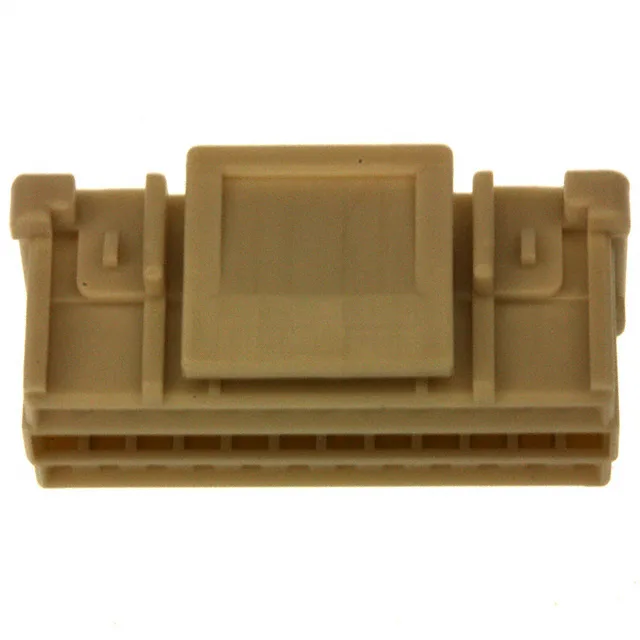

JST PNDP-24V-Z Receptacle Housing, 24 Pos, 2.00 mm

MPNPNDP-24V-Z
Active

JST PND series receptacle housing, 24 positions, 2.00 mm pitch, dual row, latch lock, free hanging, crimp termination, ivory, bulk.

$0.2900Ref. price · indicative, final on quote
PNDP-24V-Z datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

PNDP-24V-Z Technical Specifications
ParameterValue
SeriesPND
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-25°C ~ 85°C
ColorIvory
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.197\" (5.00mm)
Rows2
Contact terminationCrimp
Positions24

Product details

24-Circuit PND Receptacle Housing

At 2.00 mm pitch, the PNDP-24V-Z packs 24 circuits into a dual-row body with 0.197" (5.00 mm) row spacing. That row spacing gives enough room between rows for the crimp barrel and wire bend radius without crowding the termination zone. The 24-position count matches a 24-circuit harness — no spare cavities, no dummy terminals needed.

Latch Lock and Housing Construction

The ivory colour is standard for the PND series; it helps differentiate the receptacle from the mating header on the assembly line.

Frequently asked questions

What contacts are compatible with PNDP-24V-Z?

The PNDP-24V-Z accepts female socket crimp terminals from the JST PND series. Contacts are not included with the housing — order the terminals separately to complete the harness.
