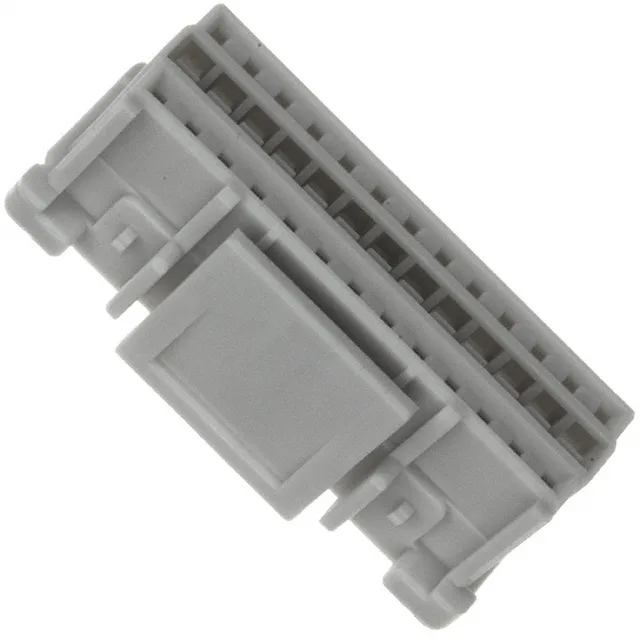

JST PND series, PNDP-26V-Z, 26-position dual-row receptacle housing, 2.00mm pitch, 5.00mm row spacing, latch lock, female socket contacts (not included), crimp termination, free-hanging, -25°C to 85°C, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | PND |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -25°C ~ 85°C |
| Color | Ivory |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.197\" (5.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 26 |
The JST PNDP-26V-Z is a 26-position, dual-row receptacle housing from the PND series, designed for 2.00mm pitch wire-to-board interconnects. The dual-row layout with 5.00mm row spacing gives you 26 circuits in a compact footprint, and the latch lock holds the mating header in place under vibration — no risk of the connector backing off in a moving assembly.
The pitch is 0.079" (2.00mm). The row spacing is 0.197" (5.00mm).
Yes, it is ROHS3 compliant.
