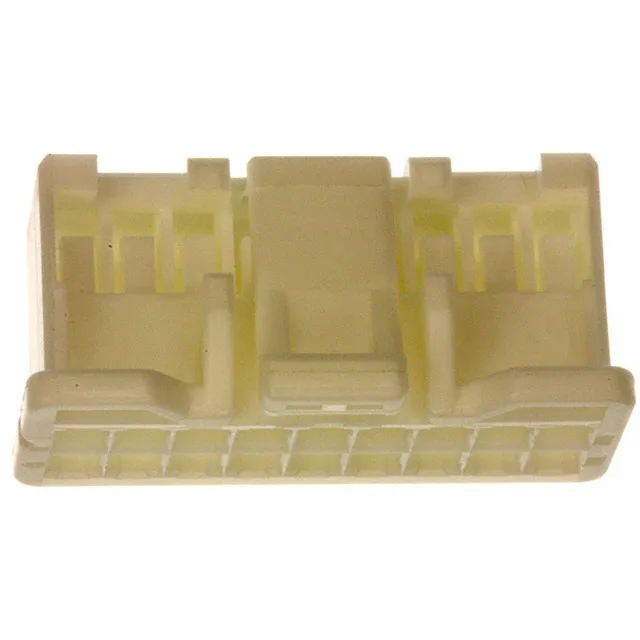

PUDP-18V-S — JST product photo
JST

JST PUDP-18V-S 18 Position Receptacle Housing, 2.00mm Pitch

MPNPUDP-18V-S
Active

JST PUD series, 18-position receptacle housing, dual-row, 2.00mm pitch, natural PBT, latch lock, crimp termination, free-hanging.

$0.4300Ref. price · indicative, final on quote
PUDP-18V-S datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

PUDP-18V-S Technical Specifications
ParameterValue
SeriesPUD
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-25°C ~ 85°C
ColorNatural
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions18

Product details

18-Circuit, Dual-Row Receptacle Housing

The JST PUDP-18V-S is the 18-circuit receptacle housing in the PUD series, a dual-row wire-to-board connector family built around a 2.00 mm pitch. It accepts female socket crimp terminals (sold separately) and terminates via crimp, making it a free-hanging, in-line mate for the matching PUD pin header.

Contacts Are Ordered Separately

This housing ships without contacts — the listing explicitly notes contacts are not included. You will need to order the matching PUD series female socket crimp terminals separately.

Active Production and Compliance

No end-of-life notice or successor part has been issued.

Frequently asked questions

Does PUDP-18V-S include contacts?

No, the PUDP-18V-S is a receptacle housing only — contacts are not included. You must order the matching PUD series female socket crimp terminals separately.

What is the pitch of PUDP-18V-S?

The pitch is 0.079" (2.00 mm), dual-row, matching the standard PUD series footprint.

Is PUDP-18V-S RoHS compliant?

Yes, it is ROHS3 compliant.

What crimp terminals fit PUDP-18V-S?

The housing accepts PUD series female socket crimp terminals. The contact termination is crimp, so select the terminal that matches your wire gauge from the PUD terminal family.
