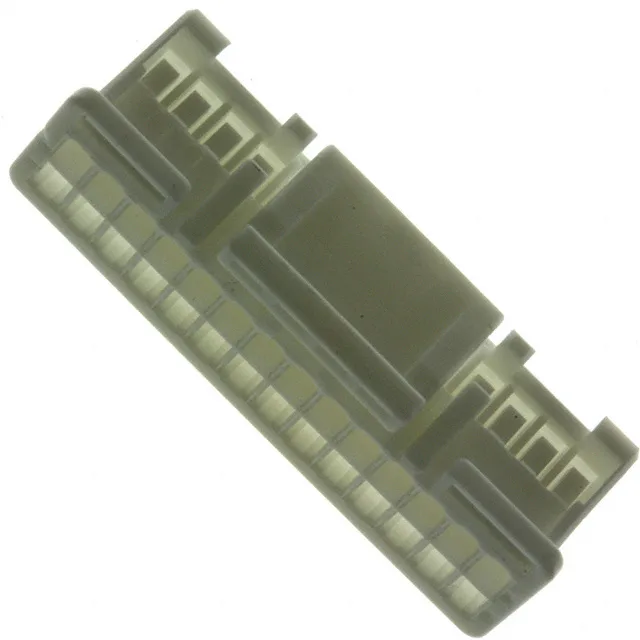

PUDP-28V-S — JST product photo
JST

JST PUDP-28V-S Receptacle, 28 Pos, 2.00 mm, Active

MPNPUDP-28V-S
Active

JST PUD series receptacle, 28 positions, 2 rows, 0.079" (2.00mm) pitch, free-hanging, latch lock, crimp termination, natural PBT housing, contacts not included.

$0.3401Ref. price · indicative, final on quote
PUDP-28V-S datasheet
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

PUDP-28V-S Technical Specifications
ParameterValue
SeriesPUD
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-25°C ~ 85°C
ColorNatural
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions28

Product details

The JST PUDP-28V-S is a 28-circuit receptacle from the PUD series, a 2.00 mm pitch wire-to-wire or wire-to-board interconnect system.

Wiring and Termination — Contacts Are Sold Separately

This is a crimp-type receptacle housing — the contacts are not included. JST's own SPUD-002T-P0.5 or equivalent are the usual fit. The free-hanging mount means you terminate the wires, insert the contacts into the housing, and mate it directly to the header — no panel cutout or board footprint required at this end.

The mating header for this receptacle is the BUD series from JST — a 2.00 mm pitch, dual-row, through-hole or SMT header.

Frequently asked questions

What are the compatible contacts for PUDP-28V-S?

The PUDP-28V-S accepts JST female crimp terminals from the PUD series, such as the SPUD-002T-P0.5. The contacts are not included with the housing and must be ordered separately.

What is the mating header for PUDP-28V-S?

The mating header is the JST BUD series, a 2.00 mm pitch, dual-row header available in through-hole or SMT termination. The latch lock on the receptacle engages with the header for a secure connection.
