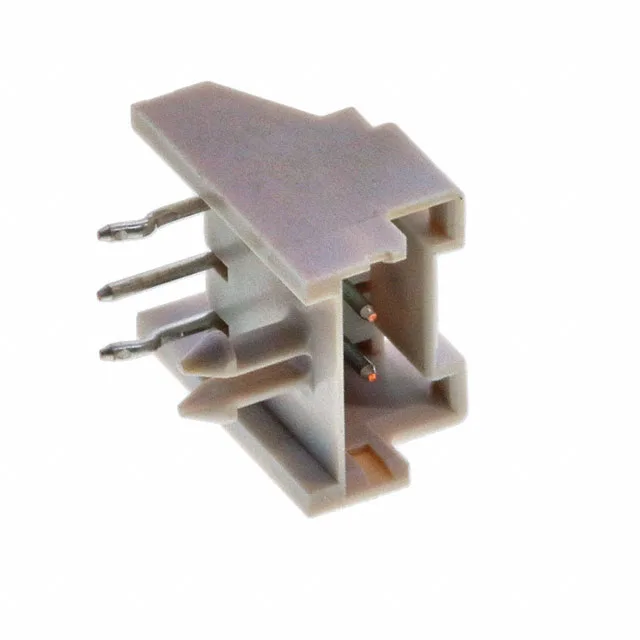

S03B-XASK-1 — JST product photo
JST

JST S03B-XASK-1 Header 3POS 2.5mm R/A Board Lock

MPNS03B-XASK-1
Active

JST XA series, Board to Cable/Wire header, 3 positions, 2.50mm pitch, right-angle through-hole, shrouded 4-wall, locking ramp, board lock, tin contacts, UL94 V-0, RoHS non-compliant

$0.4000Ref. price · indicative, final on quote
S03B-XASK-1 datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S03B-XASK-1 Technical Specifications
ParameterValue
SeriesXA
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.299\" (7.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeCircular
Rows1
Pitch0.098\" (2.50mm)
Positions3
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin

Product details

What this 3-position XA header does for a board-to-wire link

The 2.50mm pitch and 3A per-contact rating make it a fit for low-to-medium current signal or power links, such as sensor inputs or actuator outputs.

If your assembly requires RoHS compliance, check the lead-free variant S03B-XASK-1(LF)(SN) — same form, fit, and function with RoHS-compliant plating.

Mates with XA series crimp receptacle housings loaded with matching crimp terminals. Termination is press-fit and solder — the header is through-hole mounted, with the board lock providing additional retention during wave or hand soldering.

Frequently asked questions

Is S03B-XASK-1 RoHS compliant?

No, this part is listed as RoHS non-compliant. If you need RoHS compliance, the lead-free variant S03B-XASK-1(LF)(SN) is the functional equivalent with compliant plating.

What is the mating connector for S03B-XASK-1?

It mates with XA series crimp receptacle housings, such as XARP-03V, loaded with the matching crimp terminals. The locking ramp on the header engages with the receptacle latch.

What is the current rating of JST S03B-XASK-1?

Derate current above 85°C per the series derating curve.
