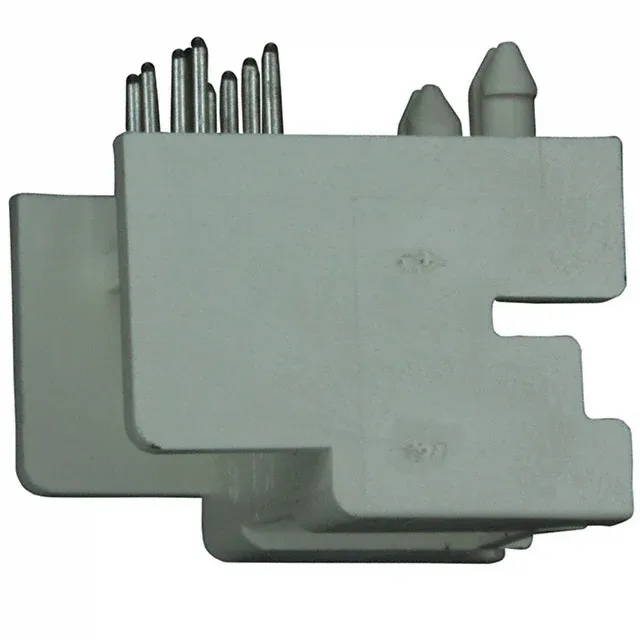

S08B-XADSS-N JST XAD Header, 8 Pos, 2.5mm, Right-Angle

MPNS08B-XADSS-N
Active

JST XAD series, S08B-XADSS-N, 8-position, 2.50mm pitch, through-hole right-angle header, shrouded 4-wall, locking ramp, tin-plated contacts, UL94 V-0, active production.

$1.6200Ref. price · indicative, final on quote
S08B-XADSS-N datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S08B-XADSS-N Technical Specifications
ParameterValue
SeriesXAD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.476\" (12.10mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeCircular
Rows2
Pitch0.098\" (2.50mm)
Positions8
Row spacing - mating0.098\" (2.50mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

Current, voltage, and temperature envelope

The 3 A rating is typical for signal-level interconnect; derate for bundle density and ambient temperature per the series derating curve. For higher cycle life or corrosive atmospheres, consider the gold-plated variant in the XAD series.

Through-hole right-angle mounting with a post length of 0.134" (3.40mm) and an insulation height of 0.476" (12.10mm).

Note: This part is RoHS non-compliant. If RoHS compliance is required, check the (LF)(SN) suffix variant in the XAD series.

Frequently asked questions

Will S08B-XADSS-N drop into a panel that was specified around S12B-XADSS-N without rewiring?

No — S08B-XADSS-N has 8 positions; S12B-XADSS-N has 12 positions. The pitch and row spacing are identical (2.50mm), but the circuit count differs. The panel wiring and mating receptacle must match the pin count.
