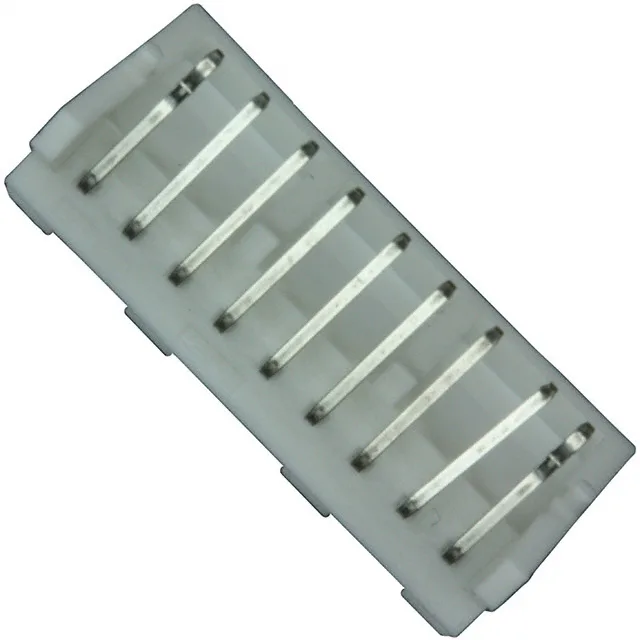

9-Position Right-Angle Header for Wire-to-Board
Its 2.00mm pitch and right-angle through-hole termination make it a compact, mechanically robust choice for routing signals perpendicular to the PCB. Rated at 3A per contact and 250V, with a locking ramp that provides positive retention against vibration-induced disconnection — a practical feature for harnesses routed near moving assemblies.
Right-Angle Routing and Locking Retention
The through-hole kinked pins anchor the header against cable strain better than a surface-mount part would. This is a practical vibration countermeasure for industrial or automotive interior applications where the connector sees moderate shock.
Sourcing and Compliance Note
RoHS non-compliant. Verify whether your application allows an exemption or if a compliant alternative is required. The PA series includes RoHS-compliant variants (e.g., S08B-PASK-2(LF)(SN)), but those are separate order codes.
Position Count vs. Siblings
The S09B-PASK-2 shares the same 2.00mm pitch, 3A rating, right-angle orientation, and locking ramp as the 8-position S08B-PASK-2(LF)(SN) and 6-position S06B-PASK-2. The only parametric difference is the position count — 9 vs 8 vs 6 — which determines the board footprint length and the number of I/O lines.
