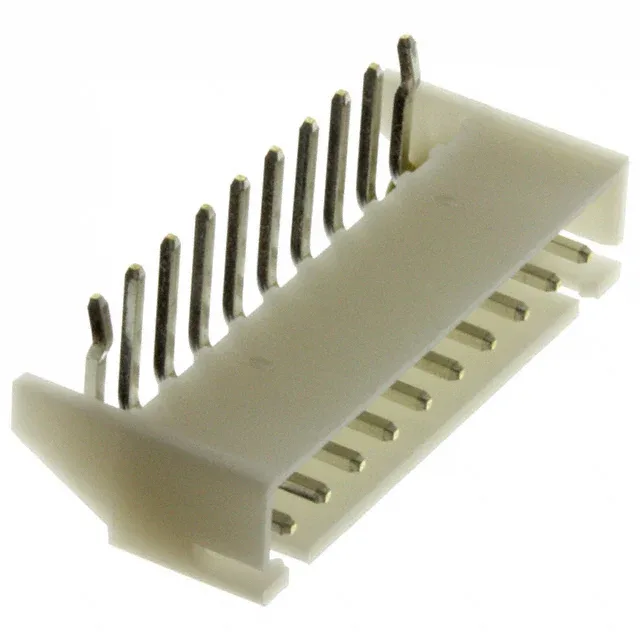

S10B-XH-A(LF)(SN) — JST product photo
JST

S10B-XH-A(LF)(SN) JST XH Header 10 Pos 2.5mm Right Angle

MPNS10B-XH-A(LF)(SN)
Active

JST XH series, 10-position, 2.50mm pitch, right-angle through-hole header, shrouded 4-wall, detent lock, tin-plated contacts, 3 A, 250 V, UL94 V-0.

$0.5300Ref. price · indicative, final on quote
S10B-XH-A(LF)(SN) datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S10B-XH-A(LF)(SN) Technical Specifications
ParameterValue
SeriesXH
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.240\" (6.10mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions10
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

2.50mm Pitch, 10-Position Right-Angle Header

The S10B-XH-A(LF)(SN): This is a JST XH series 10-position header on a 2.50mm pitch, right-angle through-hole mount.

Four-Wall Shroud and Detent Lock

A detent lock on the top engages with the mating housing latch to resist vibration-induced disconnection — useful in equipment with moderate shock or cable movement.

The 0.240" (6.10mm) insulation height above the board and 0.134" (3.40mm) post length define the standoff and solder tail clearance for the through-hole layout.

Frequently asked questions

What is the pitch of S10B-XH-A(LF)(SN)?

The mating pitch is 0.098" (2.50mm). This drives the PCB footprint and the matching receptacle housing selection.

Is S10B-XH-A(LF)(SN) shrouded?

Yes, it is a shrouded header with four walls.

What is the difference between S10B-XH-A and S10B-XH-A(LF)(SN)?

The (LF)(SN) suffix indicates lead-free and tin-plated finish. The base specs — 10 positions, 2.50mm pitch, right-angle, shrouded, detent lock — are identical between the two part numbers.
