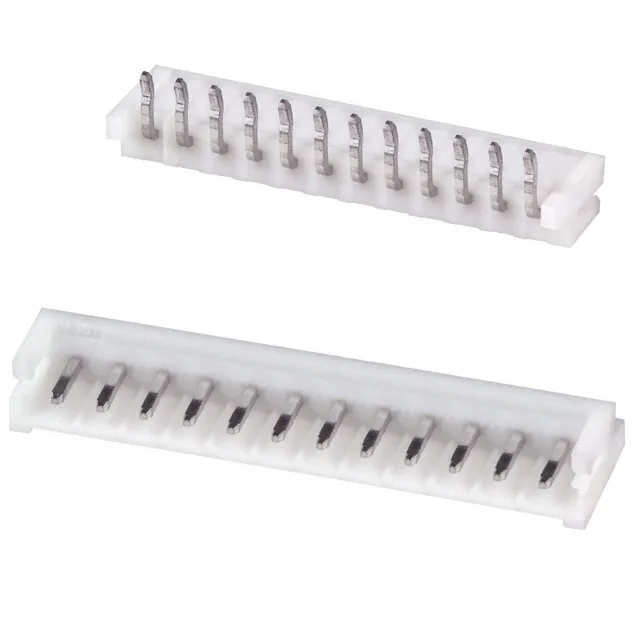

JST Sales America Inc., EH series, Board to Cable/Wire header, 12 positions, 2.50mm pitch, Through Hole Right Angle, shrouded 3-wall, latch lock, 3A, 250V, Tin contacts, UL94 V-0, Bulk.
| Parameter | Value |
|---|---|
| Series | EH |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.157\" (4.00mm) |
Its 2.50mm pitch and right-angle through-hole orientation define the PCB footprint, while the shrouded 3-wall housing and latch lock ensure a secure mate with the matching receptacle.
The UL94 V-0 nylon 6/6 housing suits equipment inside enclosures requiring flame rating.
The pitch is 2.50mm (0.098").
No, the S12B-EH is RoHS non-compliant. For a RoHS-compliant alternative, consider the S12B-EH(LF)(SN) variant.
The S12B-EH mates with JST EH series crimp receptacle housings (e.g., EHR-xx or similar) using the appropriate crimp terminals. The latch lock on the header engages with the receptacle's locking ramp.
