JST PHD series, Board to Cable/Wire, Header, Male Pin, 12 Positions, 2.00mm Pitch, Through Hole Right Angle, Shrouded - 4 Wall, Detent Lock, Tin Contacts, UL94 V-0, 3 A, 250 V
| Parameter | Value |
|---|---|
| Series | PHD |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |

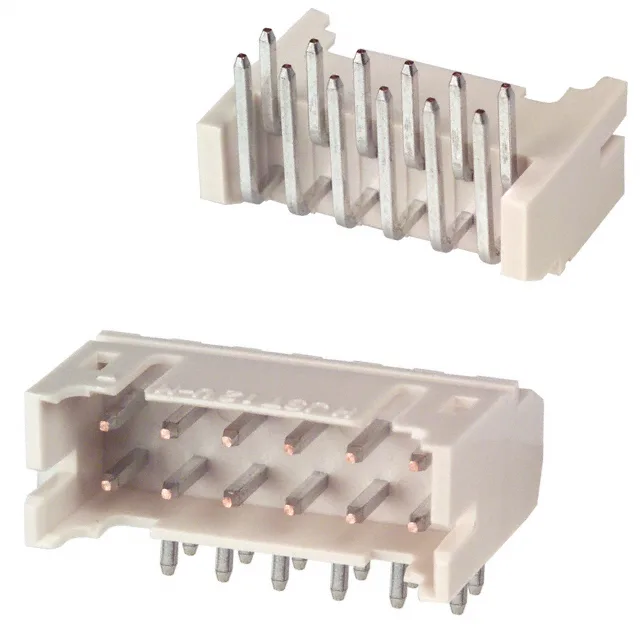

The S12B-PHDSS: This is a 12-position, 2-row right-angle header from JST's PHD series.
The 3 A figure is per circuit under nominal conditions; derate if all 12 positions are loaded near the ceiling in a warm enclosure.
Note: this part is listed as RoHS non-compliant.
No. The part is listed as RoHS non-compliant. Check your assembly's material compliance rules before ordering.
It mates with a PHD series crimp receptacle housing (e.g., PHR-12) using the appropriate crimp terminals. The 2.00mm pitch and detent lock are common across the series.
No — S14B-PHDSS has 14 positions; the footprint and pin count are different. For a 12-position design, S12B-PHDSS is the correct choice.
